The battery coating process involves several critical steps utilizing specialized equipment to ensure the proper application and adhesion of coating materials onto battery surfaces. The following is an outline of the process with key steps highlighted:

I. Introduction

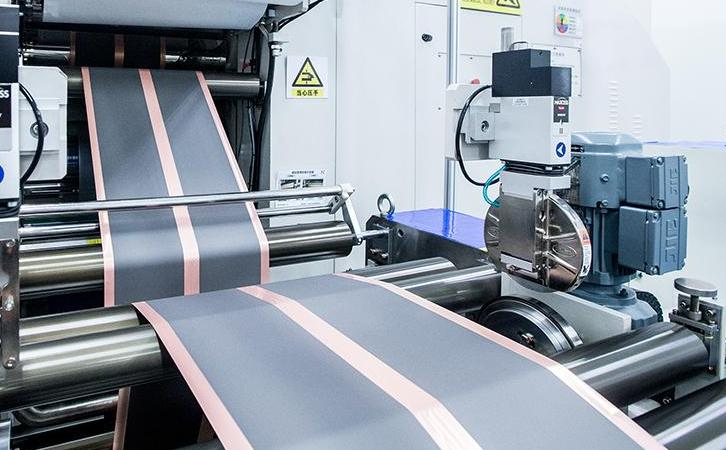

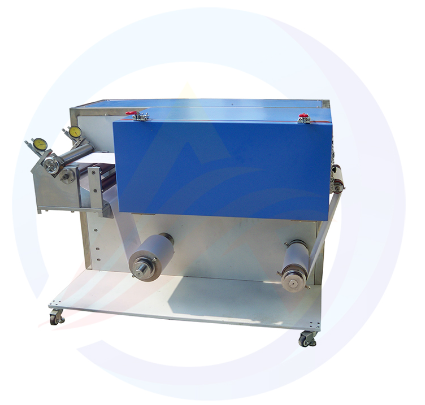

Battery coating equipment is a vital component in the battery manufacturing process, particularly for lithium-ion batteries.

It ensures uniform and precise coating of active materials onto battery electrodes.

II. Preparation

Material Preparation

Ensure the coating material (e.g., slurry, ink, or paste) is prepared according to specifications.

Check the viscosity and temperature of the coating material to ensure they are within the recommended range for application.

Equipment Setup

Calibrate and set up the coating machine, including adjusting rollers, nozzles, or other application tools as necessary.

Ensure the conveyor belt or designated coating area is clean and ready for battery loading.

III. Loading

Carefully load the batteries onto the conveyor belt or into the designated coating area.

Ensure proper spacing and positioning of batteries to allow for even coating application.

IV. Coating Application

Method Selection

Choose the appropriate coating method based on the coating material and battery type (e.g., spraying, dipping, roller coating, or slot-die coating).

Application Process

Apply the coating material evenly and consistently across the surface of the batteries.

Monitor and adjust the speed of the conveyor belt, nozzle pressure, or roller gap as needed to achieve the desired coating thickness and uniformity.

V. Drying/Curing

Pass the coated batteries through a heated chamber or oven to evaporate solvents and cure the coating material.

Control the temperature and duration of the drying/curing process to ensure proper adhesion and curing of the coating.

VI. Quality Control

Inspection

Conduct visual inspections to check for coating defects such as unevenness, cracks, or contamination.

Use thickness gauges or other measurement tools to verify coating thickness meets specifications.

Testing

Perform functional tests to ensure the coated batteries meet performance standards.

Reject or reprocess batteries that do not meet quality standards.

VII. Unloading

Carefully unload the coated batteries from the machine to avoid damaging the newly applied coating.

Prepare the coated batteries for further processing or packaging.

VIII. Maintenance and Cleanup

Clean and maintain the coating equipment according to manufacturer instructions.

Dispose of waste materials and solvents safely and responsibly.

IX. The impact of battery coating equipment on battery performance is multifaceted and significant.

The Influence of Battery Coating Equipment on Battery Performance.

Battery coating equipment plays a crucial role in determining the overall performance of batteries, particularly in the manufacturing of lithium-ion batteries. The impact can be broken down into several key areas:

1. Coating Uniformity

Capacity and Consistency: The uniformity of the coating directly affects the battery's capacity and consistency. Inconsistent coating can lead to uneven distribution of active materials within the battery, impacting its ability to deliver the nominal capacity and compromising cycle stability.

Internal Resistance: Non-uniform coating can also increase the battery's internal resistance, reducing its charging and discharging efficiency and potentially leading to excessive heat generation.

2. Coating Precision

Coating Thickness: Precise control of coating thickness is essential for optimal battery performance. Excessively thin or thick coatings can negatively impact the battery's subsequent processing steps (e.g., rolling, slitting), leading to inconsistent performance. Furthermore, uniform coating thickness is crucial for maximizing capacity utilization and extending cycle life.

Dimensional Control: Accurate coating dimensions ensure proper alignment between the anode and cathode, facilitating efficient lithium-ion transport and storage, thereby enhancing battery performance.

3. Other Factors During Coating Process

Drying Temperature: Proper control of drying temperature is vital to avoid incomplete drying or damage to the coating layer. Improper drying can lead to cracking, peeling, or other defects that compromise battery safety and longevity.

Static Electricity: Static electricity during the coating process can attract dust and impurities, causing coating defects and potentially causing micro-shorts within the battery.

4. Equipment Performance Requirements

High Precision: The coating head and feed system must achieve high precision to ensure accurate control of slurry dispensing and uniform coating thickness.

Stability: Stable operation of the coating equipment minimizes fluctuations that could lead to inconsistencies in coating quality.

Intelligence: Modern coating equipment is increasingly incorporating advanced control systems and sensors for real-time monitoring and precise adjustments, enhancing process control and reducing defects.
