Introduction:

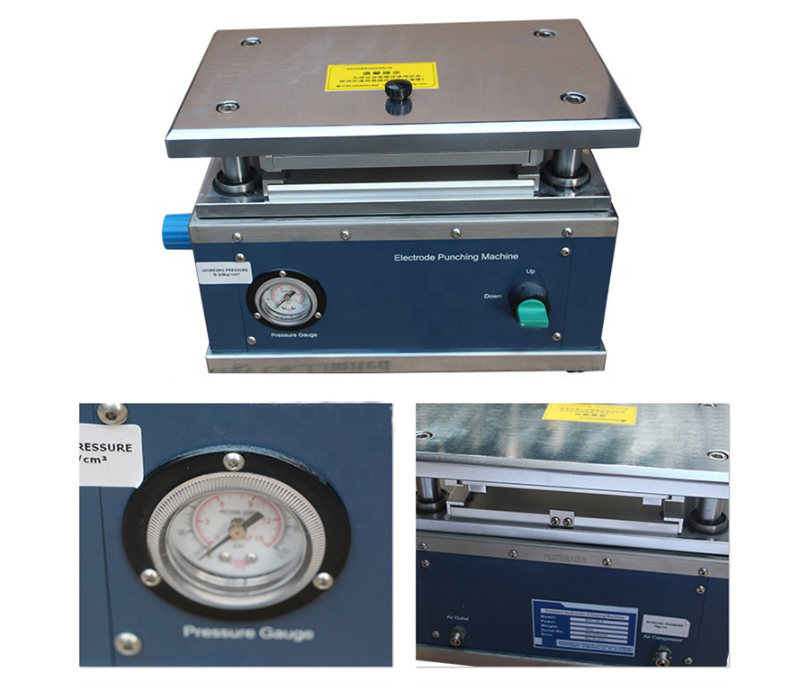

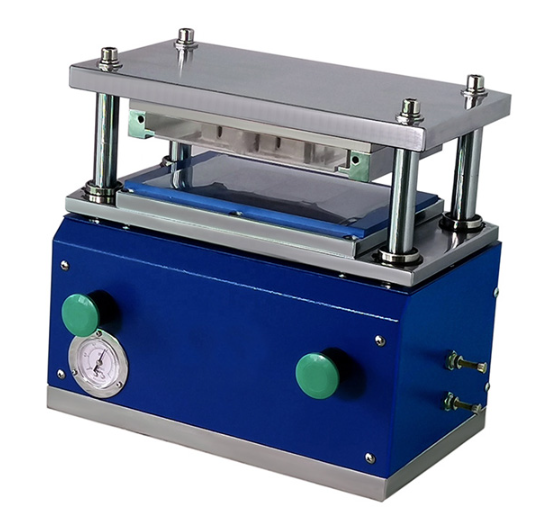

The pouch cell battery electrode punching machine plays a crucial role in the production process of pouch cell batteries, particularly in the preparation of electrodes. Its primary function is to precisely punch out electrode materials such as battery cathodes, anodes, and separator sheets into standardized samples or strips, ensuring uniformity and precision for subsequent battery assembly and testing.

Role of the Punching Machine

Precision Cutting: The punching machine utilizes precision-engineered cutting tools to accurately punch out electrode materials. This ensures that the electrodes are of consistent dimensions, which is essential for battery performance and safety.

Efficiency Enhancement: Automated punching machines significantly improve production efficiency by reducing manual labor and minimizing errors associated with manual cutting.

Cost Reduction: By minimizing waste and ensuring precise cuts, the punching machine helps reduce material costs and overall production expenses.

Quality Control: It is an integral part of the quality control process, ensuring that electrode materials meet strict specifications before proceeding to the next stage of battery assembly.

Usage Details

Preparation:

Place a thin cardboard sheet on the machine's platform to protect the surface and facilitate cleaning.

Select the appropriate cutting tool (or die) according to the required electrode dimensions and mount it on the upper press plate.

Loading Material:

Place the electrode material (e.g., cathode or anode sheet) on the cardboard sheet, ensuring it is properly aligned and positioned.

Adjust the cutting tool so that it is in contact with the material, but not exerting pressure.

Operation:

Engage the machine's control mechanism, typically by rotating a control knob or pressing a button, to initiate the punching process.

The machine's hydraulic cylinder or motorized press will then move the upper press plate downwards, causing the cutting tool to punch out the electrode material.

After the punch is complete, the machine will automatically reset the upper press plate to its original position.

Inspection and Removal:

Inspect the punched electrode strips for quality and dimensional accuracy.

Remove the strips from the machine and proceed with the next batch or proceed to the next stage of battery assembly.

Maintenance and Cleaning:

Regularly clean the machine to remove debris and residue from the cutting tools and press plates.

Check the cutting tools for wear and replace them as necessary to maintain precision.

Ensure that the machine's control panel is kept clean and free from moisture or corrosive substances.

Safety Precautions:

Always wear appropriate safety gear, such as gloves and protective eyewear, when operating the machine.

Ensure that the machine is properly grounded to prevent electrical hazards.

Follow all manufacturer's instructions and safety guidelines during operation.

In summary, the pouch cell battery electrode punching machine is an essential tool for ensuring precision and efficiency in the production of pouch cell batteries. Its careful operation and regular maintenance are crucial for maintaining high-quality electrode materials and ensuring the overall success of the battery production process.
