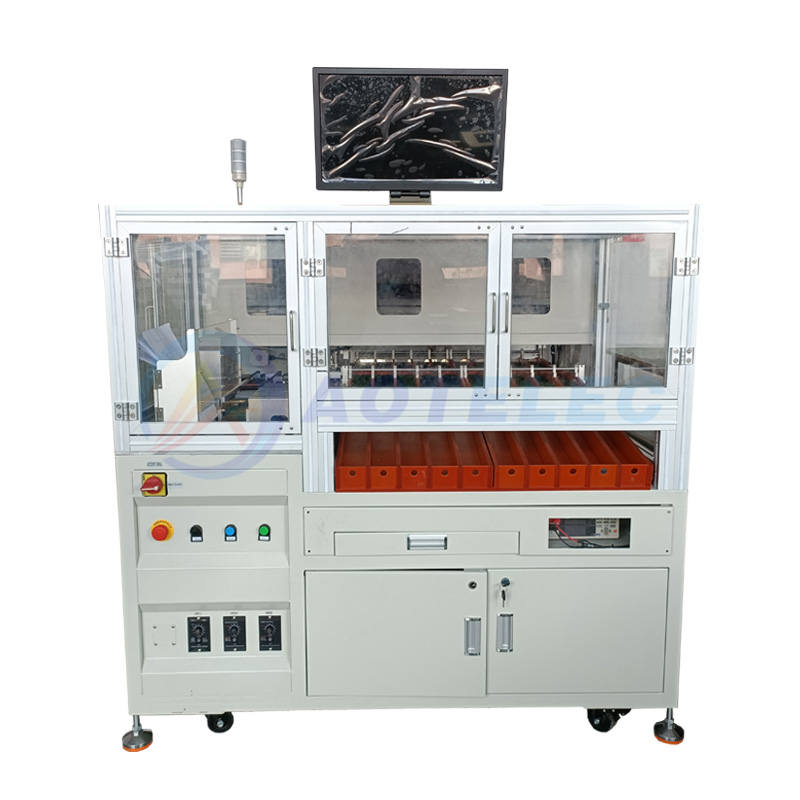

The lithium-ion battery sorting machine is a testing and sorting equipment for the internal resistance, voltage and other parameters of cylindrical batteries. It comes with a high-precision internal resistance and voltage automatic testing system.The device sends the battery to the specified gear according to the internal resistance and voltage value set on the computer software, and the system can achieve 5-20 grades of sorting.

Lithium-ion battery active sorting machine is suitable for electric vehicle battery packs, street light battery packs, car battery modules, balance car battery packs, scooter battery packs, mobile power supplies, starting battery pack modules, laptop battery packs, and batteries for power tool battery packs Voltage and internal resistance test sorting.

1. The lithium-ion battery active sorting machine adopts a new hopper-type active feeding structure, which has high-speed and stable feeding, no impact and scratches on the battery; and is suitable for direct manual feeding of different material boxes, which can realize uninterrupted production;

2. The detection part of the 18650 battery sorting machine adopts a high-precision and high-stability internal resistance detector, and the feeding part adopts a high-speed and high-stability feeding mechanism;

3. The pick-and-place manipulator of the 18650 automatic sorting machine adopts the servo manipulator multi-PCS pick-and-place structure, so that the time for each battery is less than 1 second;

4. The sorting box of the lithium-ion battery automatic sorting machine adopts a 5-20 gear structure, which has the function of full material alarm, and the door at the end of the material box is convenient and quick to discharge;

5. The internal resistance and voltage detection results of the battery sorting machine of the lithium-ion battery automatic sorting machine are analyzed by the computer to generate classification data, and at the same time, the curve and bar charts are generated, which is convenient for intuitive calculation and display of mass production quality.the detection system has the function of database, which can query, calculate and export the historical detection data.
