First, adjust the power switch of the electrode rolling machine,Then wipe the steel roller with a cloth dipped in alcohol.

Confirm the following three points before starting up.

1. Check that the emergency stop switch remains connected before powering on

2. The surface of the steel roller is dry, clean, free of oil and particles.

3 Adjust the gap between the steel rollers. There are different rolling parameters in the battery mode. Don't move around here. Pay attention to the rolling stroke to avoid motor failure.

Second, take a suitable electrode roller press,

1 Adjust the gap between steel rolls to the range of process requirements.

2. Keep the balance between the electrode and the micrometer.

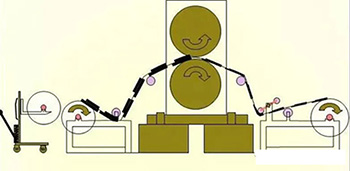

Place the material on the unwinding shaft and adjust it to a proper position. Place the electrode between the two rollers. The electrode is required to be parallel to the front and back, and cannot be mounted sideways in the air or tilted.

Turn on the tension system and automatic correction system in front of the roller press, and pay attention to adjusting the tension not too tight or too loose.

Third, during the electrode rolling process, the weight requirements are as follows:

1. Pay attention to the perpendicularity of the electrode and the micrometer.

2. Keep the hand movement speed the same as the electrode movement speed.

After the material is rolled, the surface of the roller should be wiped. Use an anti-rust agent to wipe the surface of the roller to keep it clean.

If there are no two roller presses, one roller press must be used to process the cathode and anode at the same time, and the roller must be cleaned.

In addition, the electrode will have moisture after being rolled, so it should be placed in an oven for baking.
