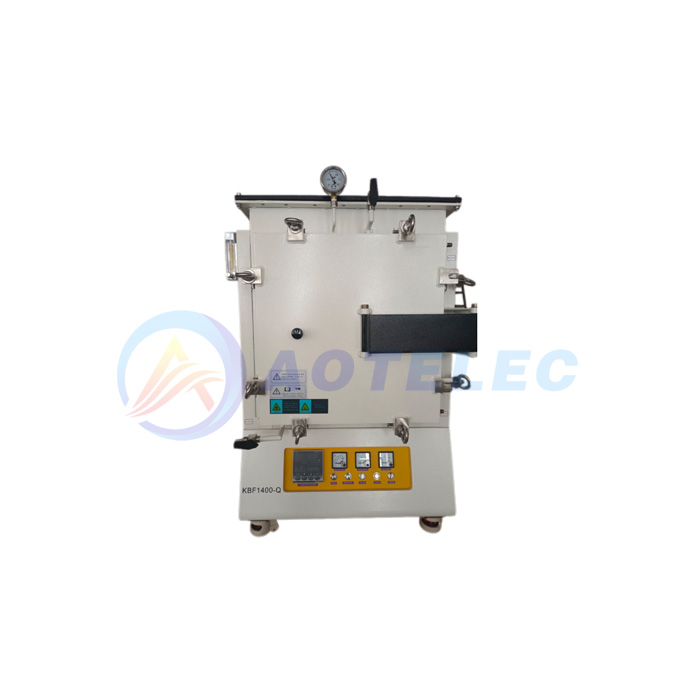

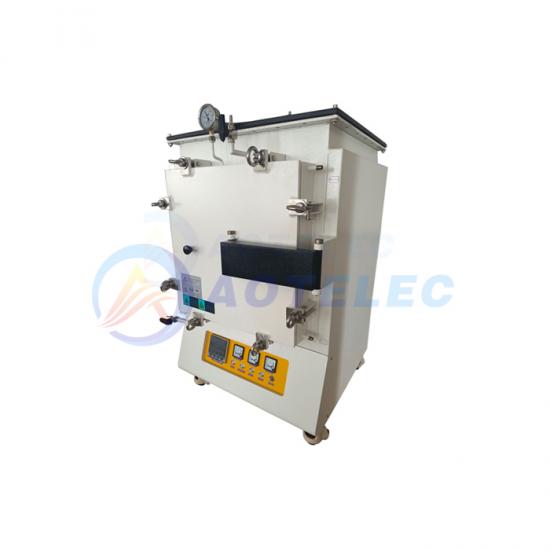

Aotelec hot sell KBF1400-Q atmosphere box furnace

Aotelec hot sell KBF1400-Q atmosphere box furnace

The battery box furnace plays an important role in the production process of a variety of batteries such as lithium batteries, and heat treats the positive or negative materials of lithium batteries to make the batteries.

Item NO.:
AOT-KBF1400-Q
Lead Time:
5-20days
Product Orgin:
China
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

1, double shell structure

2, Yudian 50 segment program temperature control system

3, the furnace adopts alumina polycrystalline fiber material

4, the double-layer furnace shell is equipped with air cooling system, which can quickly rise and drop temperature

5, the heating rate can reach 1000 degrees within 30 minutes, and has over temperature, break, over current protection and other functions

6, advantages: temperature field equilibrium, low surface temperature, rising and falling temperature rate, energy saving and other advantages, is the ideal product for high temperature sintering, metal annealing, quality testing by universities, scientific research institutes, industrial and mining enterprises.

7, temperature: maximum operating temperature :1400 degrees (<30min) Working temperature :1350 degrees

8, heating rate :≤10 degrees /min(recommended heating rate, conducive to the service life of the equipment)

9, heating element: silicon carbon rod

10, thermocouple: Type S

Main Parameter
Model	KBF1400-Q1	KBF1400-Q2	KBF1400-Q3	KBF1400-Q4
Furnace size（mm）	300200120	300200200	400300300	500400400
Rated temperature	1350℃
Maximum temperature	1400℃
Powder	5KW	7KW	13KW	18KW
Voltage	220V	220V	380V	380V

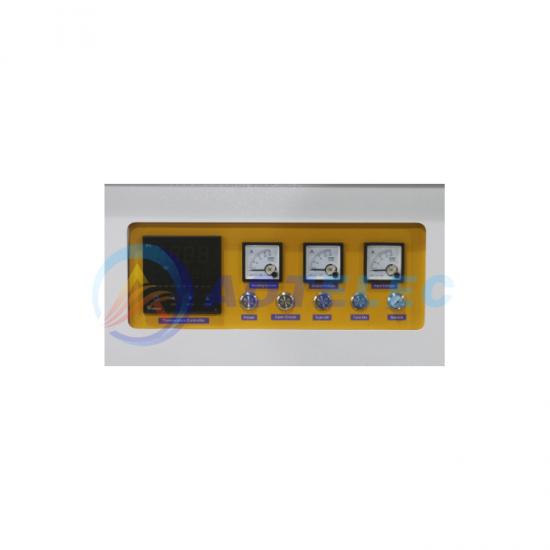

Temperature control	1, includes a type 838D temperature controller 2, PID automatic temperature control system; Intelligent 50 segment programmable control 3, built-in overheat protection and thermocouple fault alarm Temperature control accuracy: 1℃;
Shell design	The shell of the electric furnace adopts double-layer forced air cooling structure to make the external temperature of the furnace shell close to room temperature at the highest temperature
Can pass gas	All inert gas mixture, nitrogen, chlorine, oxygen, water vapor...
Heating rate	≤0~ 20.C/ min
Other configuration	1 thermocouple, 1 furnace door brick, 1 alumina cushion brick, 1 crucible, 1 crucible clamp, 1 high temperature submersible pump, 1 glove, 1 manual
Temperature control safety	Electric furnace adopts integrated circuit, module control, double loop protection (temperature protection, ultra-high temperature protection, break protection, fluid protection, overpressure protection)
Temperature control accuracy	±1℃
Temperature uniformity of furnace	≤±5
Furnace material	High-density alumina ceramic fiber
