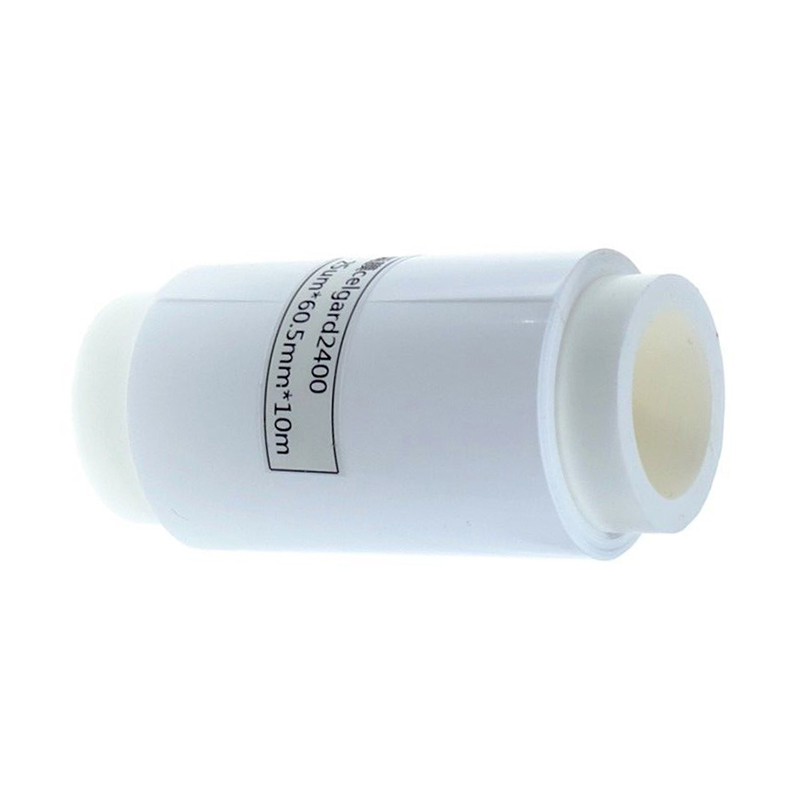

Celgard 2400 PP Membrane Battery Separatorfor Lithium-ionBatteries Lab Research
Introductions:
This Microporous Monolayer Polypropylene PP Membranes is usually used to the disposable (primary) lithium battery. Monolayer PP battery separators are also well-suited for electric drive vehicle (EDV) applications.
Celgard 2400 single layer PP Battery Separator Features:
1. Production by dry method drawing process
2. Excellent resistance to acids, alkalis and most chemicals
3. Consistent pore structure with high chemical and thermal stability
4. Ideal for various battery applications, recommend use for lithium ion batteries.
5. Excellent oxidation resistance, ensuring excellent cycling and trickle charging performance
6. Horizontal (TD) "zero" shrinkage reduces internal shorts and improves high temperature dimensional integrity
|
Name |
Celgard 2400 PP Separator Film for Lithium Batteries |
|
Model |
2400 |
|
Color |
White |
|
Form |
Film / Membrane |
|
Thickness |
25um |
|
Width |
85mm |
|
Length |
60 meters |
|
Gurley(JIS) |
620 seconds |
|
TD Shrinkage @ 90°C / 1 hour |
0% |
|
MD Shrinkage @ 90°C / 1 hour |
5% |
|
Porosity |
41% |
|
Puncture Strength |
380 grams |
|
Tensile Strength, MD |
1420 Kg/cm^2 |
|
Tensile Strength, TD |
140 Kg/cm^2 |
|
Condition |
Brand new |
Package Contents
60meters/roll battery separator film.
Please contact sales person for customized size.
