product description:
This battery coating machine is dedicated to the continuous coating process of cathode and anode electrode of lithium ion batteries, suitable for small-scale experiments in colleges and enterprises.
It can also be used for ceramic films, crystal films, special nano films, etc.
The body is made of stainless steel, which is beautiful, durable, and the surface is sprayed with plastic, which is easy to operate.
Features:
1. The film coating motor is a low-speed synchronous synchronous motor from Taiwan Edley;
2. The ball screw and linear guide are only imported from Taiwan with high-precision HIWIN brand:
3. The doctor blade(applicator) adopts the SUS316L stainless steel material imported from Finland:
4. Drying system with strong wind heating and digital display temperature control, the maximum working temperature is 150℃;
5. The coating film speed can be adjusted within the range of 0-100mm / sec, with digital display;
6. Vacuum aluminum plate, can quickly place or remove the electrodes, copper foil, aluminum foil;
7. Doctor blade with adjustable coating thickness (accuracy 0.02mm) width 0-150mm;
Item Name

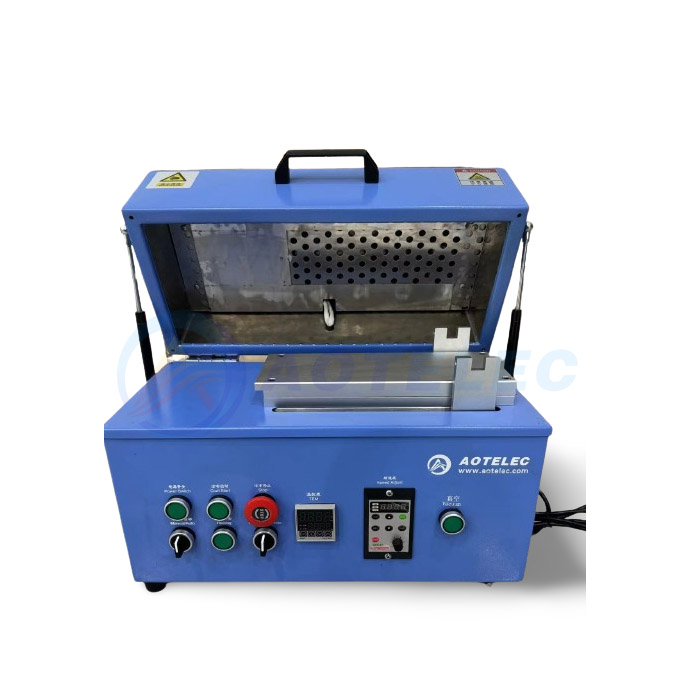

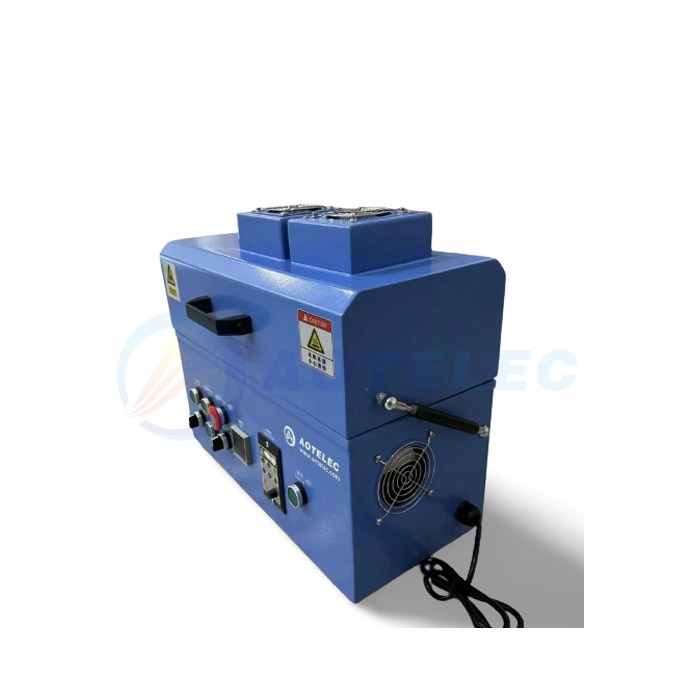

Small Heatable Vacuum Battery Film Coating Machine with UV Light and Detachable Cover
Model
AOT-TCM-200S
Max Stroke
250mm
Vacuum plate
Equipped with vacuum aluminum plate
Coating Speed
0~100mm/s
Dimension of vacuum plate
L315mm×W120mm×H30mm
Regulating range of scrapper
0.01~3.5mm
Film width
100mm
Heating temperature
Room temperature ~ 150℃
Digital displayed thermostat, the accuracy is±1℃
Power supply
220V/50Hz
Weight
45KG
Lid size included
L315mm×W130mm×H375mm
Does not include lid size
L315mm×W130mm×H225mm
Standard Configurations
*applicator
*no-oil vacuum pump
*horizontal rod
*feeding box
