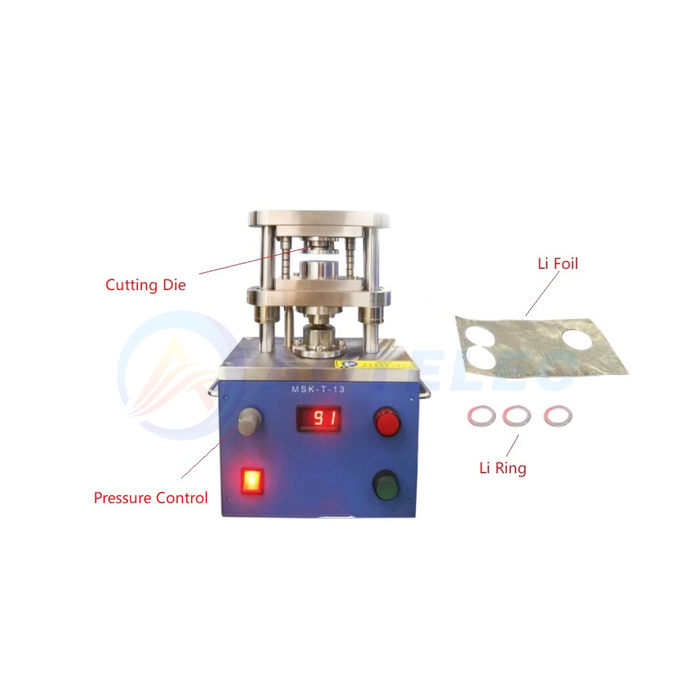

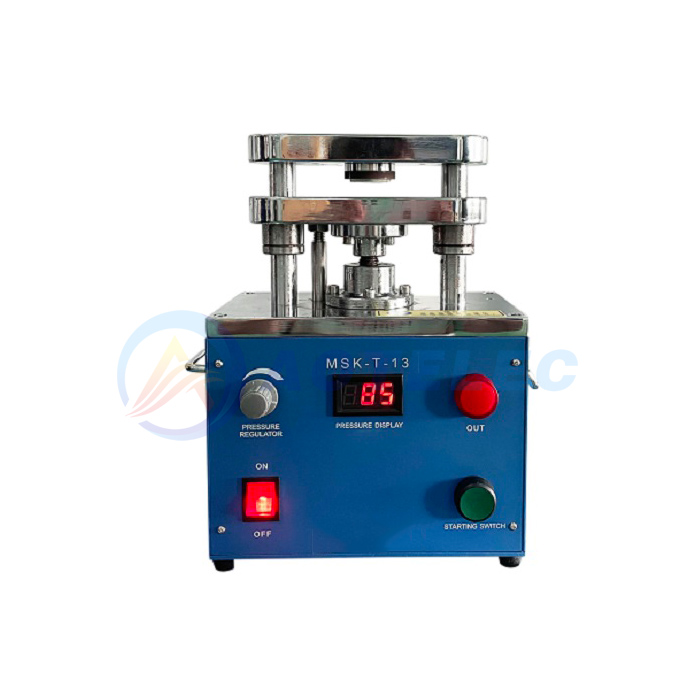

AOT-MSK-T13 electric ring disc cutter is a pressure controlled battery cutter. This press is driven by a motor, which solves the problem of oil leakage in the glove box of traditional hydraulic presses. It is also small in size, making it easy to pass through the transition compartment inside the glove box.

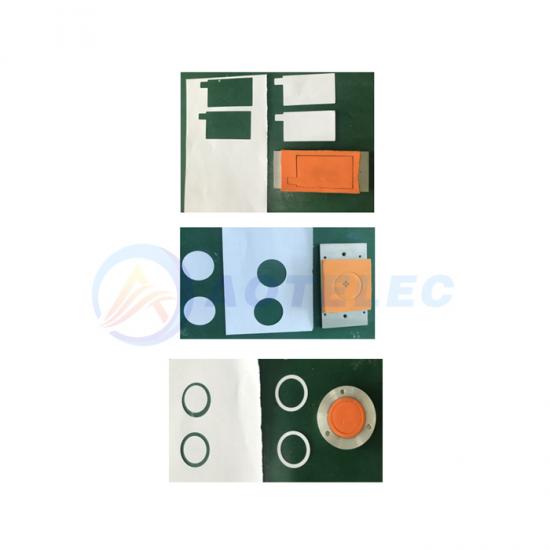

It also can cut round disc and rectangular type sheets from Li, Al, and copper foil with an optional cutting die.
SPECIFICATIONS:
|
Model |
AOT-MSK-T13 |
|
Product Name |
Compact electric ring cutter |
|
Power |
110 - 240V AC (50/60Hz) 24V DC motor with reducing gear, 15W. The operation is very safe without further certification
|
|
Pressure |
0-1.4T |
|
Cutting die |
Circular cutting die: Max Dia 60mm, customizable for diameters ≤ Dia60mm, Square cutting die: Max size is 80 * 60mm, can be customized for sizes ≤ 80 * 60mm Circular slicing cutting die: OD diameter ≤ 60mm optional, ID: less than 60mm optional Multiple slicing molds: If the mold size is relatively small, multiple slicing molds can be arranged on one template, For example, if the size of the circular slicing mold is 30mm, a maximum of four slicing molds can be made on one template, and four samples can be cut at the same time |
|
Main features |
2. Can configure slicing molds of different sizes The template size is 83 * 60mm The slicing mold can be made in any size within the template size, and can be made into square shapes The shape can also be made into a circle, and according to the size of the slicing mold, it can be placed on a template It can be used as a slicing mold or multiple slicing molds 3. Can be used inside the glove box |
|
Product Dimensions |
270mm(L) x 130mm(W) x 300mm(H) |
|
Weight |
12KG |
