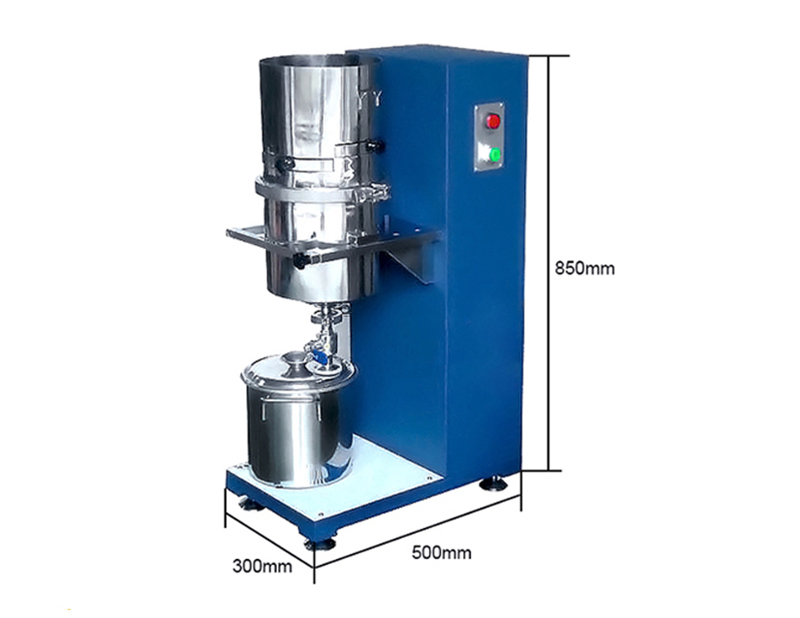

5L Bench-top Magnetic De-ironing Filtration System for Battery Slurry Filting

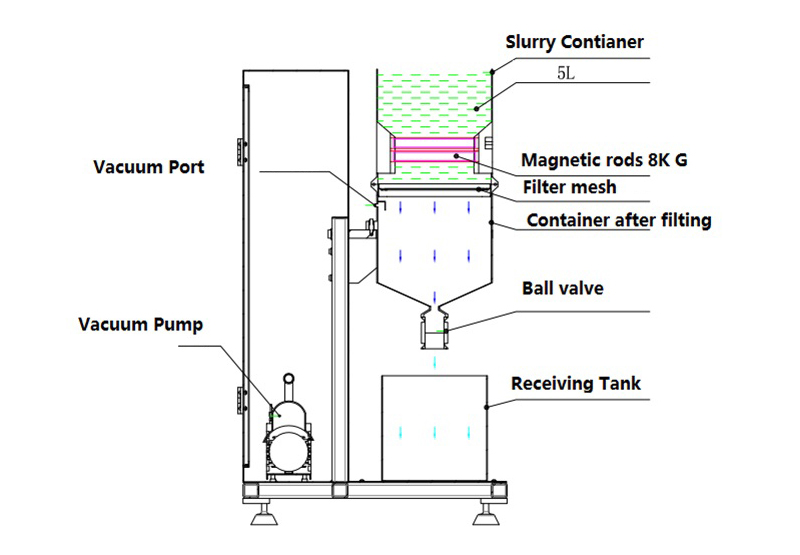

This lab equipment is a CE certified magnetic deironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
|
Model |
Magnetic deironing filtration system AOT-MDFS-5L |
|
Voltage supply |
110Vac - 240Vac universal power |
|
Power |
50W |
|
Working Temperature |
<=40°C |
|
Process Capacity |
5L |
|
Magnetic Field Strength |
8000 G |
|
Filter |
3 mesh filters: 80, 100, 120 |
|
Structure |
Containers Made of Stainless Steel 304 |
|
Slurry Viscidity |
<=15000CP |
|
Humidity |
0-90%RH |
|
Deironing Function |
8000-10000 GC |
|
Overall Dimensions |
500mm(L) x 300mm(W) x 850mm(H) |
|
Shipping Weight & Dimension |
130 lbs, 48"x40"x43" |
|
Compliance |
CE Certified Machine is safe 24VDC input , which can be used without any safety certification |
|
Warranty |
One year limited with lifetime support |
