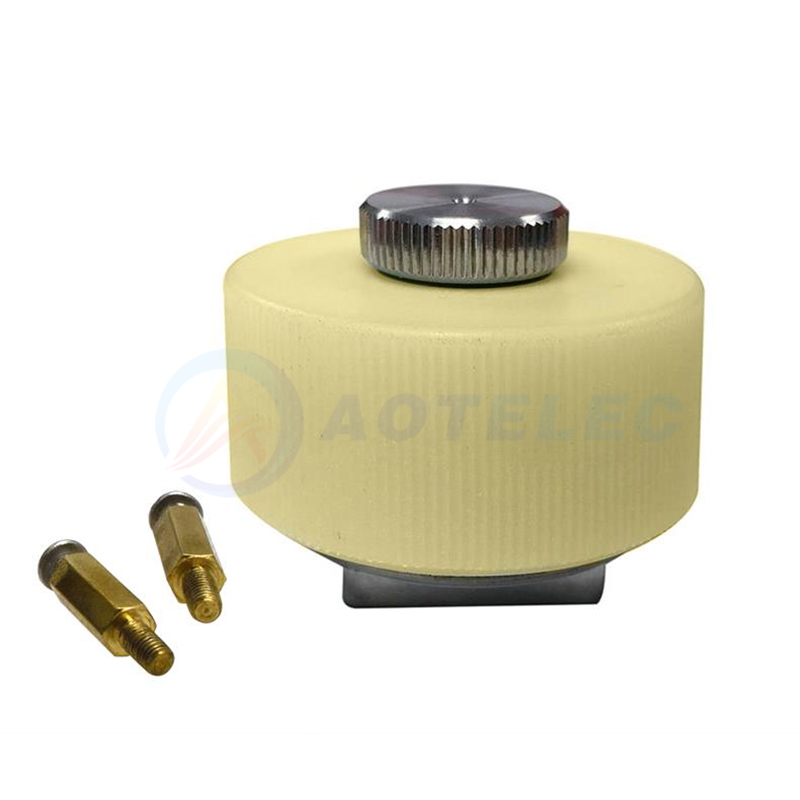

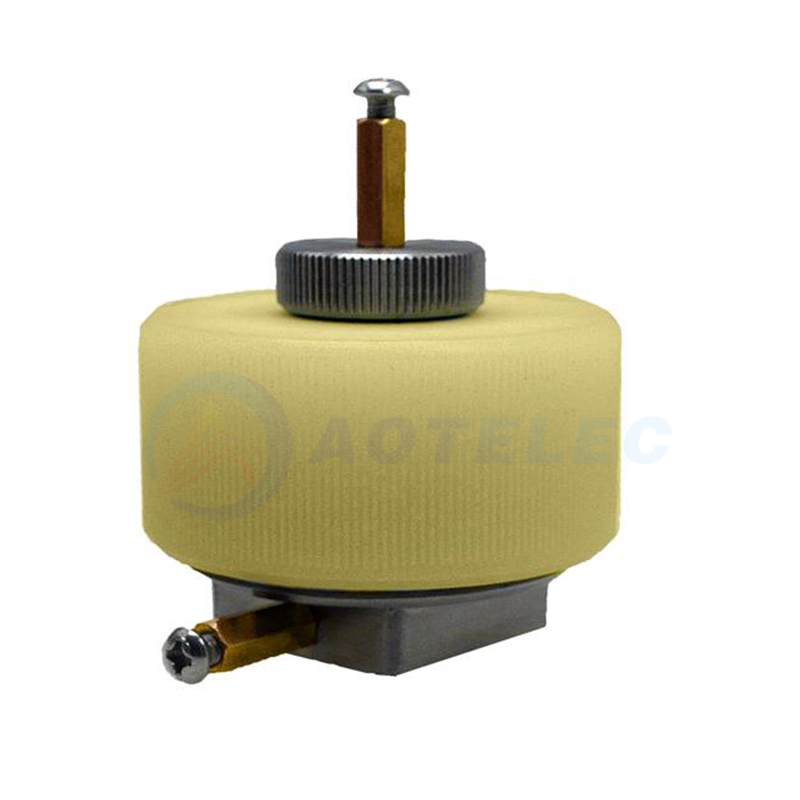

AOT-EQ-HSTC split-able test cell is designed for high-throughput R&D battery material testings without any crimper. The smart design allows you to quickly and easily assemble a coin cell by hand tightening to increase research efficiency. It can be used for both liquid and solid-state batteries.
SPECIFICATIONS
|
Structure & Features |

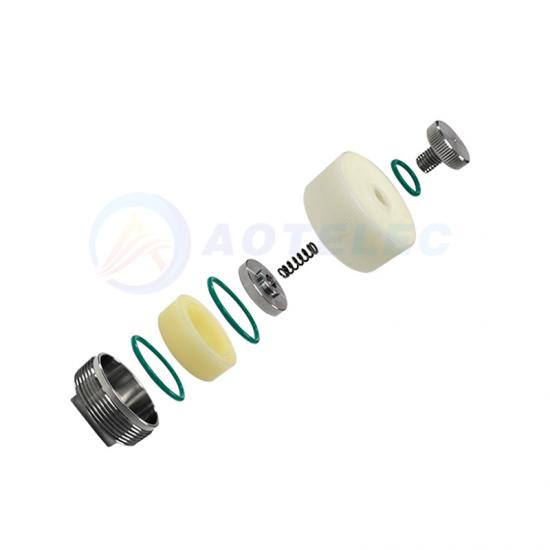

1. Easy cell assembling by "thread-in" the bottom contacting plate and top plunger into the Nylon body. 2. Stainless Steel contact plate and plunger. 3. The Body is made of Nylon body with Max. 100oC working temperature ( PTFE is optional with 200oC Max. working temperature ) 4. The air-tight design ensures zero electrolyte leakage 5. Easy to separate and clean after use 6. Same functionality as "Swagelok Type Cell" but with more size options for electrode and separator. 7. Spacer inside the test cell to press down on the electrode and prevent the electrode from curling 8. Extending rod included for each electrode 9. O-ring is made of Fluorine rubber to ensure no liquid electrolyte leaking |
|
Optional Gold Plated Cell |
1. The test cell can be gold plated for extra corrosion resistance, please chose from the personalization section. 2. Note: Customized (Au coated) test cells are non-returnable and non-exchangeable. |
|
Electrode Insert Dia. |

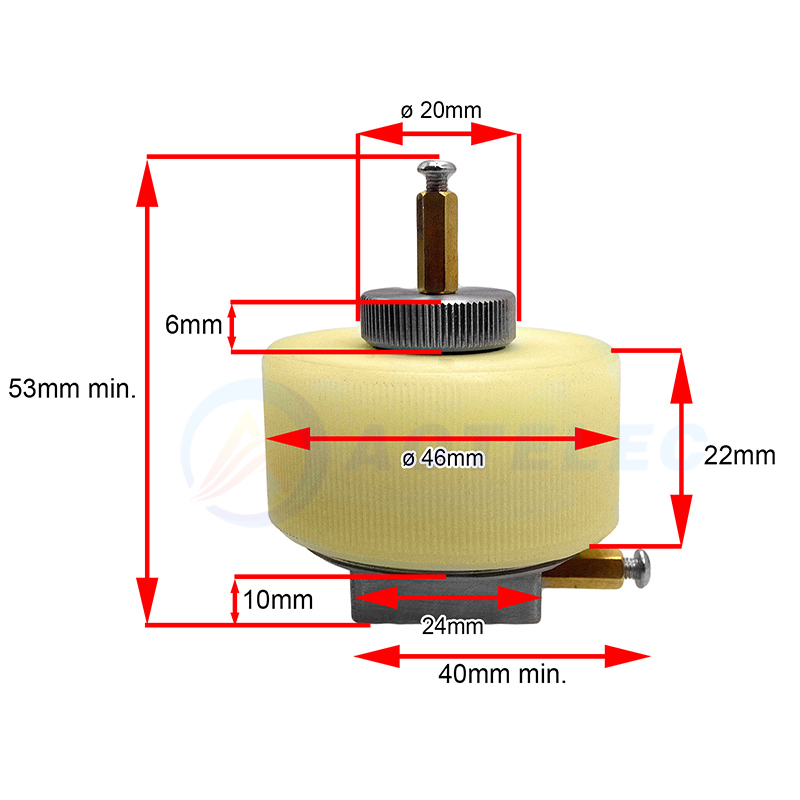

Standard diameter that can be put inside： 20mm Diameter Max |
|
Working Temperature |
Max. 100 ºC (Nylonmaterial)
|
|
Spring |
Test piece is compressed and held in place by one compression spring. Material: SUS 304 Spring Rate / Stiffness: 7.9 N/mm (806 g/mm) Dimensions when free: 5 mm OD × 3.4 mm ID Length under maximum compression: 7.2 mm |
|
Gold Coating (Optional) |
Anti-corrosive Au coating on the base contact plunger and inserts is available upon request Note: Customized (Au coated) test cells are non-returnable and non-exchangeable. |
