Battery cathode material Na3V2(PO4)202F

Na3V2(PO4)202F material has good structural stability and can maintain a high capacity retention rate after multiple charge and discharge cycles, which can extend the service life of the battery and reduce the use cost. Sodium vanadium fluorooxyphosphate has a high theoretical specific capacity, the theoretical specific capacity can reach 130mAh/g or so, can store and release more sodium ions in the battery charging and discharging process, so as to provide a higher energy density for the battery, so that it can meet some application scenarios for high energy storage requirements.
  • Item NO.:

    AOT-CA-0063
  • Lead Time:

    5-10days
  • Product Orgin:

    China
  • Brand:

    AOTELEC
  • Shipping Port:

    xiamen
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

Na3V2(PO4)202F material has good structural stability and can maintain a high capacity retention rate after multiple charge and discharge cycles, which can extend the service life of the battery and reduce the use cost.

Sodium vanadium fluorooxyphosphate has a high theoretical specific capacity, the theoretical specific capacity can reach 130mAh/g or so, can store and release more sodium ions in the battery charging and discharging process, so as to provide a higher energy density for the battery, so that it can meet some application scenarios for high energy storage requirements.

Physical and chemical properties




Test item

unit

Test result

Test method

appearance

/

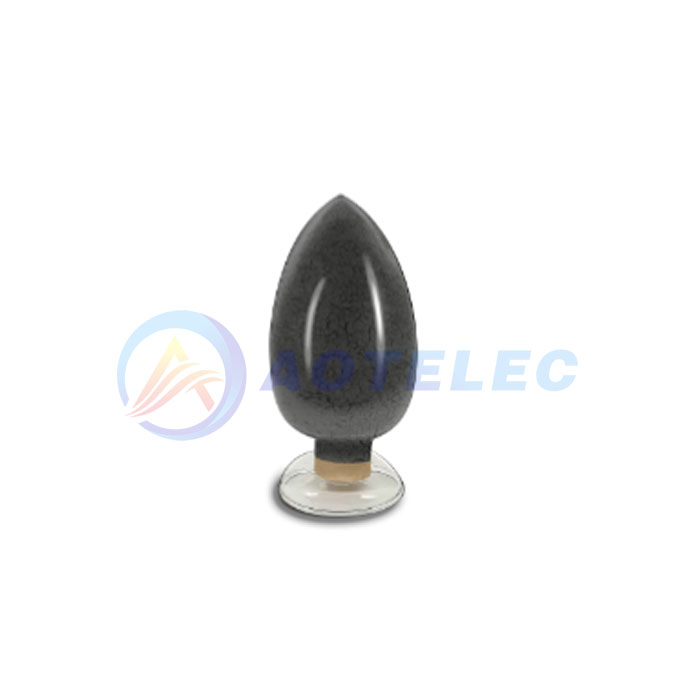

Grayish black powder, uniform color

visual

D50

um

2.337

lCP

Specific surface area

m2/g

9.002

Specific surface area meter

Vibration density

g/cm3

0.74

Vibration density meter

hydration

ppm

/

Karl Fischer Cullen method

PH

/

/

PH meter

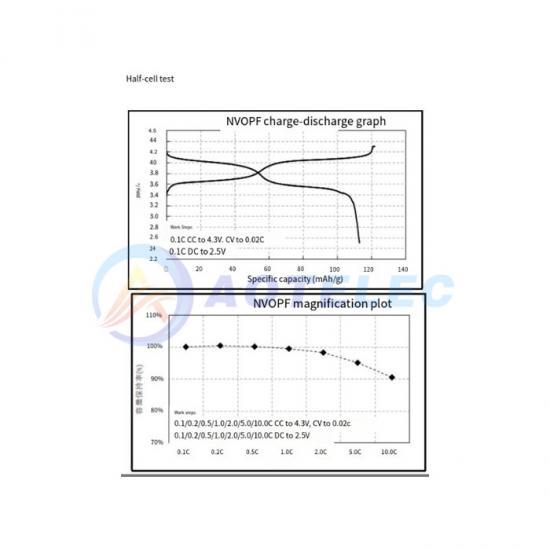

0.1C initial discharge capacity

mAh/g

113.1

0.1/0.1C(4.3-2.5V)

0.1C initial discharge efficiency

%

92.7

0.1/0.1C(4.3-2.5V)

Company profile

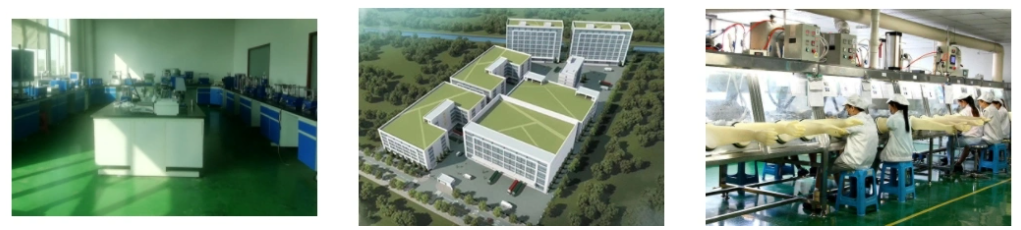

xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment.
