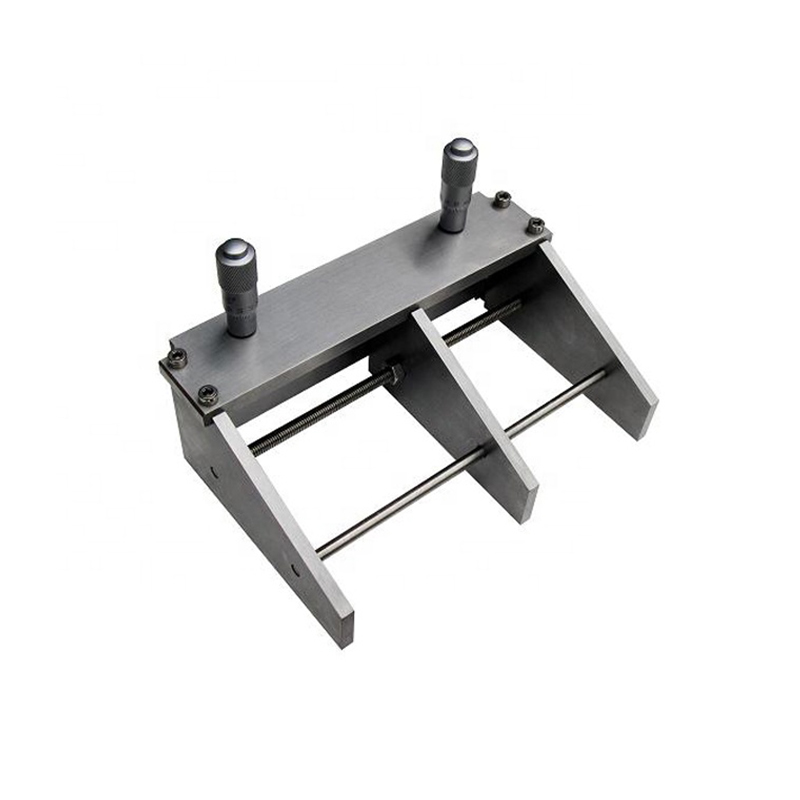

150mm Width Adjustable Wet Film Applicator for Lab Battery Electrode Coating
AOT-KTQ-150A This unique wet film applicator features adjustment.for both of thickness and width.
The operator sets the blade clearance by adjusting the micrometers, and sets up film width to be coated by adjusting blade width. This is an excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.
|
Model |
Width Adjustable Film Applicator AOT-KTQ-150A |
|
Width |
0 - 150 mm adjustable width. |
|
Wet film thickness |
10 - 4500 microns |
|
Micrometer head's controllable accuracy |
10 microns |
