description：
The battery coating machine is a device specially used for uniformly coating the surface of the positive and negative electrode materials of the battery. It enables precise control of coating thickness and speed to ensure the stability of coating quality and performance. In the lithium battery production process, the battery coating machine plays an important role in effectively preventing the direct contact between the battery material and the electrolyte, and improving the safety and electrochemical performance of the battery.
|
Item Name |

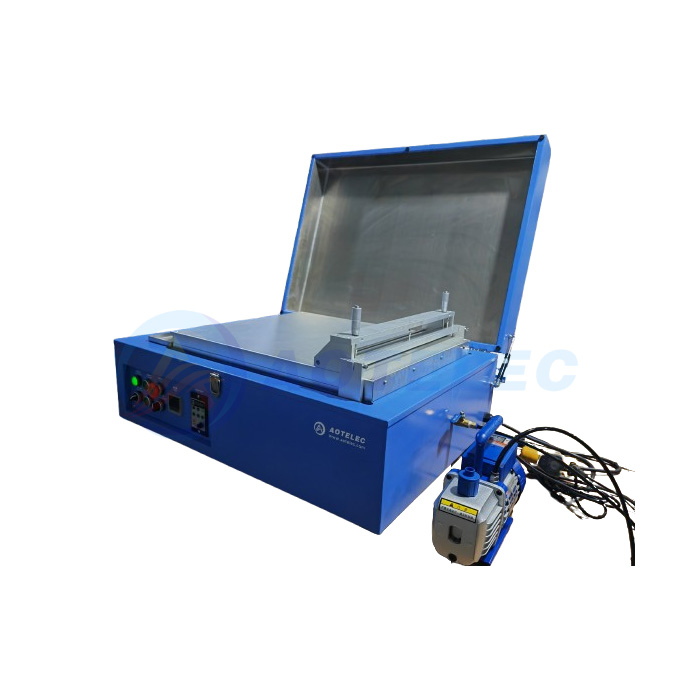

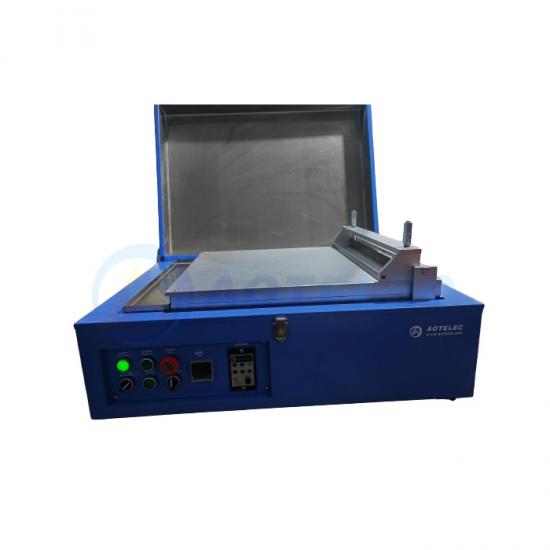

Automatic Tape Casting Machine with Heater and Dryer |
|
Model |
AOT-TCM-350 |
|
Source Voltage |
AC 220V ±10%, 50Hz |
|
Power |
2000W |
|
Stroke Range |
10 - 350mm adjustable by using Adjustable Position Switch |
|
Vacuum plate |
Equipped with vacuum aluminum plate |
|
Coating Speed |
0-60mm/s |
|
Dimension of vacuum plate |
L615mm×W520mm×H30mm |
|
Doctor Blade width |
500mm |
|
Regulating range of blade |
0.02~2.5mm |
|
Heating temperature |
Room temperature ~ 150℃ Digital displayed thermostat, the accuracy is±1℃ |
|
Weight |
90KG |
|
Dimension |
90×68×36cm |
|
Standard Configurations |
*applicator *no-oil vacuum pump * Pump pipe *horizontal rod |
