Stainless Steel Air Meshed Lithium Coin Cell Button Battery Cases for Lab
|
Model |

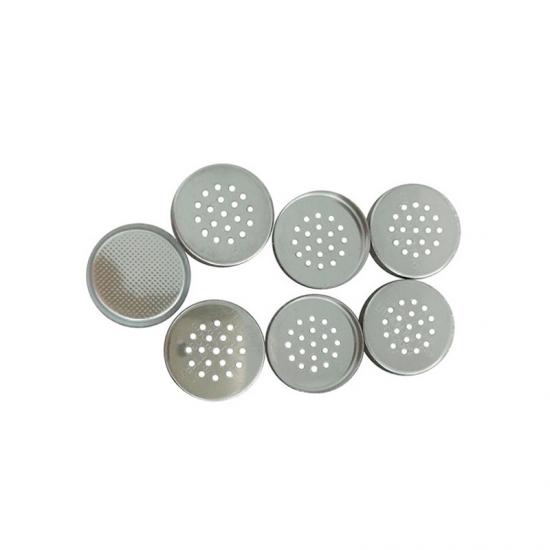

CR2032 Meshed Coin Cell Case for Li-air Battery |
|
Dimensions |
20mm*32mm |
|
Materials |
Casing: SS304/SS316 Sealing Gasket: PP Material The thickness of the SS304/316 for both anode and cathode case is 0.25 mm +/- 0.02 mm. |
|
Application Note |
After perfectly crimping, the External Height should be around 3.0mm. The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.
Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs, and use drying oven to dry several hours (please set the oven to 30℃,because of PP O-ring). |
