50mm Width Stainless Steel Film Applicator Doctor Blade for Lab Coating Device

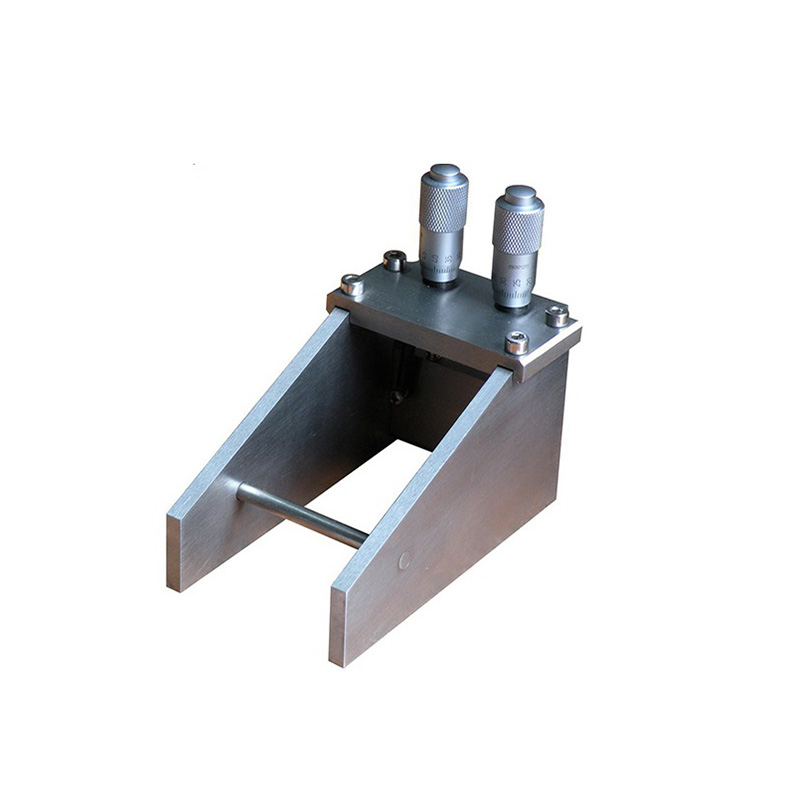

The AOT-KTQ-50 Adjustable Film Applicator is a small lab coating device with 50mm coating width- This unique wet film applicator features micrometer heads for knife blade adjustment.
The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.
Specifications:
|
Model |
Film Applicator / Doctor Blade AOT-KTQ-50 |
|

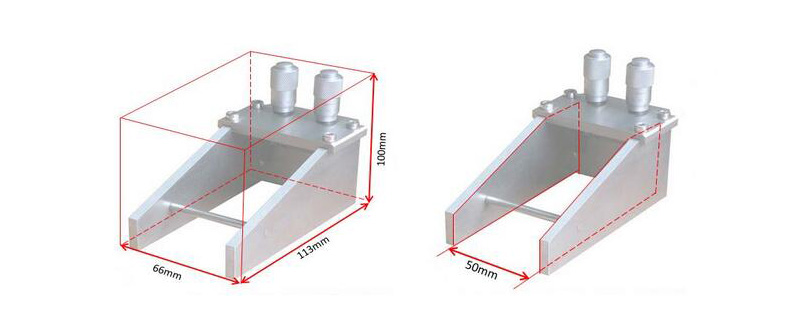

Standard width |
50mm |
|
Wet film coating thickness |
0 - 6000 microns |
|
Micrometer head's controllable accuracy |
10 um |
|
Material |
304 stainless steel |
|
Application |
Lab film coting |
