Lithium Nickel Manganese Cobalt Oxide NMC 111
It iscathode electrode active material of the lithium ion battery.The nickel cobalt manganese three elementsbattery material as cathode of battery are more safety than lithium cobalt oxide battery. Mainly used for small electric equipment.
Appearance is black powder.
|
Product: |
LiNiMnCoO2 |
Type: |
AOT-NCM-111 |
|
Ni:Co:Mn |
1:1:1 |
||
|
Application: |
Cylindrical Al can and polymer lithium battery |
||
|
Term |
Standard |
||
|
Ni+Co+Mn (%) |
≥57.17 |
||
|
Li (%) |
7.00-8.00 |
||
|
H2O (%) |
≤0.1 |
||
|
D10 (µm) |
≥4.0 |
||
|
D50 (µm) |
8.0-12.0 |
||
|
D90 (µm) |
≤25.0 |
||
|
PH Value |
≤11.00 |
||
|
Pressed Density (g/cm3) |
≥2.20 |
||
|
Specific Surface Area (m2/g) |
0.30-0.80 |
||
|
First discharge Capacity (mAh/g), |
155-158(0.2C,4.2-2.7V,Button half open cell) |
||
|
First Dischange efficiency(%) |
85-87% |
||
|
Appearance |
Black Powder,No Agglomeration,No Sundries |
||
|
Storage,Delivery |
Avoid moist |
||
|
Use Time |
WithinOne Year |
||
Exhibition

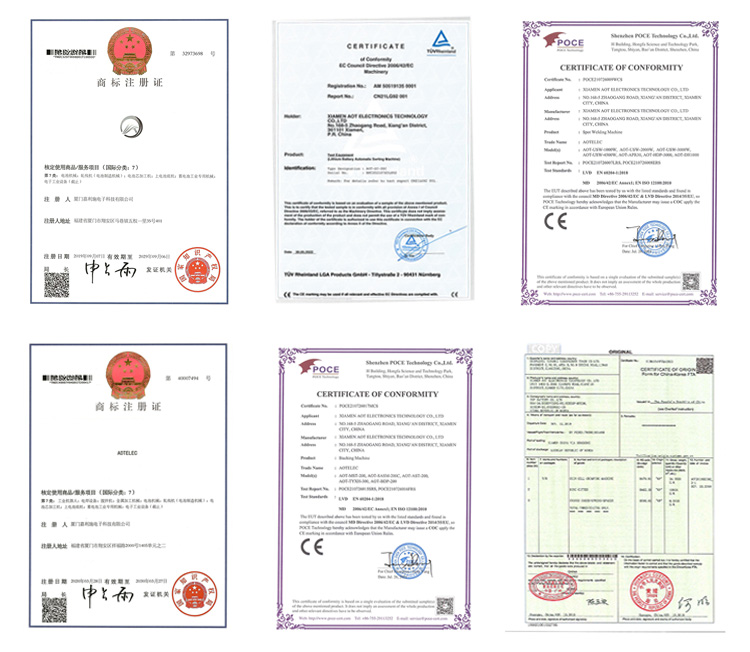

Cerificate
