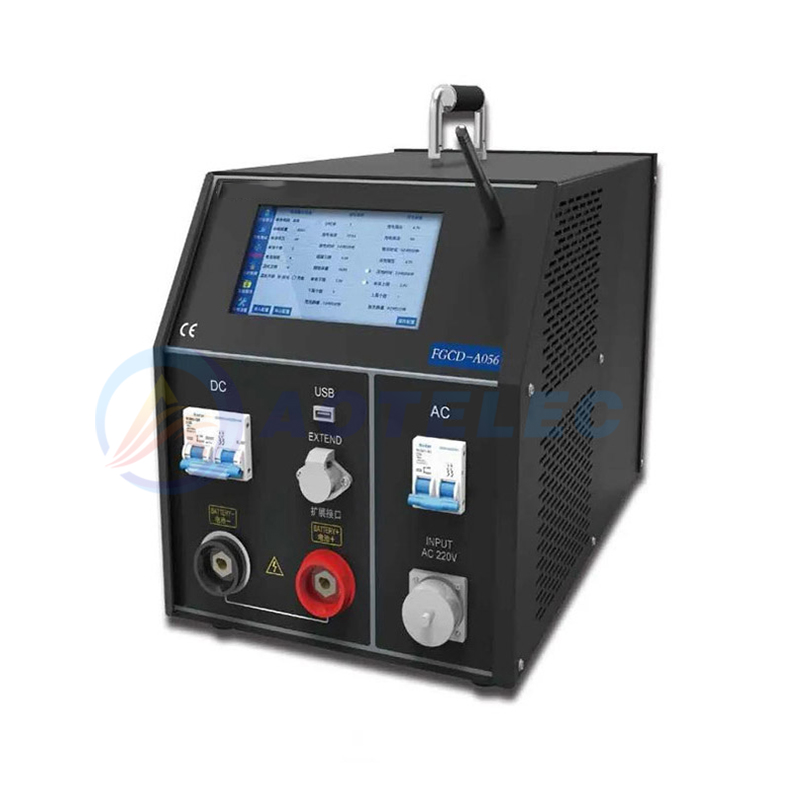

Battery Pack Discharge-Charge Integrated Machine

Lithium Battery Discharge-Charge Integrated Machine

AOT-FGCD series tester adopts advanced charging and discharging technology with a variety of built-in test and maintenance modes, which are suitable for the discharge, charging and discharge-charge cycle tests of various lithium baery packs on the market.

Item NO.:
AOT-FGCD
Lead Time:
5-10days
Product Orgin:
China
Brand:
AOTELEC
Shipping Port:
Xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

OVERVIEW：
FGCD series tester adopts advanced charging and discharging technology with a variety of built-in test and maintenance modes, which are suitable for the discharge, charging and discharge-charge cycle tests of various lithium battery packs on the market.

APPLICATION：
Battery Manufacturers: after-sales, warehousing, TVC testing, QA and other battery testing Automobile Assembly Plants: battery maintenance 4S Dealership: after-sales maintenance in module charging, discharging and quick matching

FEATURE:
1.One Machine with Multifunction : wide range design suitable for battery packs’ discharge, charge and activation test for different voltage levels
2.Multi-Discharge Modes: high efficiency aerospace load materials and advanced control technology to ensure discharge accuracy
3.High-Efficiency Charging: complete 3-stage charging mode to improve charging efficiency
4.Battery Pack Activation: freely set charge and discharge rules, activation times, and effectively increase battery capacity 5.Communication: CAN，RS485
6.Wireless Cell Voltage Recording: wireless monitoring and acquisition technology is used to record each cell voltage
7.Multiple Protections: supports protection of over-discharge, over-temperature, overcurrent, polarity reversal

Model	FGCD-A200CT	FGCD-A300CT	FGCD-10030NT	FGCD-60030NT
Group Voltage Range	DC 2-285V	DC 2-285V	DC 2-100V	DC 200-600V
Accuracy	±0.5 ％FS	±0.5 ％FS	±0.5 ％FS	±0.5 ％FS
Cell Voltage Range	0-5V	0-5V	0-5V	0-5V
Accuracy & Resolu	0.001V	0.001V	0.001V	0.001V
Discharge Current Range	0-100A/7.2KW	0-100A/7.2KW	0-30A/2KW	0-30A/18KW
Accuracy & Resoluon	±1 ％FS	±1 ％FS	±1 ％FS	±1 ％FS
Charge Current Range	0-80A/4.4KW	0-80A/6.6KW	0-30A/2KW	0-20A/12KW
Accuracy & Resoluon	±1 ％FS	±1 ％FS	±1 ％FS	±1 ％FS
AC Power Supply	AC220V	AC220V	AC220V	AC380V
Working Mode	discharge, charge, ac甘va甘on (discharge-charge cycle)
Communicaon(PC)	RS485、CAN
Protec	DC input over voltage, polarity reversal, discharge over current, over temperature
Dimension (mm)	512295339	512295339	452234286	680554334
Weight (kg)	25	28	18	40
