Planetary Vacuum Mixer For Lithium Battery Laboratory Research
AOT-MSK-SFM-2Lis an excellent tool for preparing LiCoO3, LiFePO4, Phosphorus, and ceramic slurries and provides much better results in dispersion and uniformity. This Planetary Vacuum Mixer with a 2-liter container and PLC Touch Panel Control. Such a vacuum mixer incorporates the unique tri-shaft stirring design to ensure a gas-bubble free blending of complex materials under vacuum with extreme uniformity. Furthermore, an observation window on the mixing tank provides a better way to monitor the entire mixing process.
Specifications:
|
Mixing Blades Speed & Power |
Stirring : 0 ~ 112 RPM , 750W |
|
Dimensions |

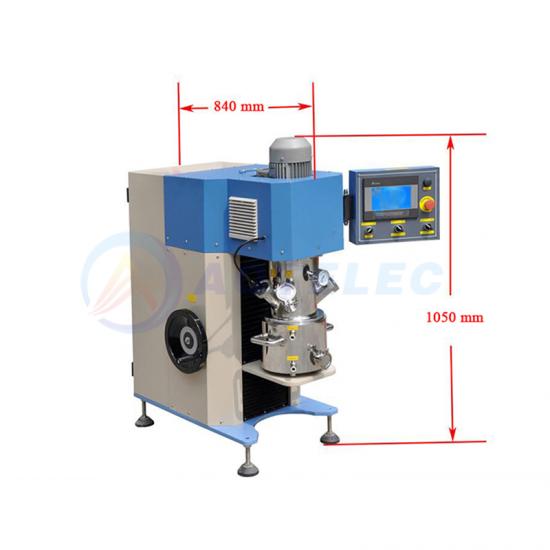

W970mm ×D 840mm × H1050mm Mixing Tank: 180mm Dia. × 135mm Height |
|
Power Consumption |
2kW (Recommend 20A Outlet for pump cold start) |
|
Working Voltage |
208 - 240V AC, 50/60HZ, Sing phase (Power cord included) 220V AC Power plug is not included. |
|
Mixing Tank Diameter |
40mm |
|
Mixing Tank Vertical Distance |
130mm, manual |
|
Mixing Tank |
180 mm I.D. x 118 mm H 3.0 Liter Effective capacity for mixing: 2.0 Liter |
|
Mixing Blades |
3 axis planetary mixing 2 stirring blade 1 dispersing blade 1 spatula |
|
Vacuum Pump |
One double-step rotary vane vacuum pump is included |
|
Liquid Cooling |
One water chiller with 9L tank |
|
PLC Control Panel |
Digital touchscreen for efficient adjustments |
|
Net Weight |
350kg |
