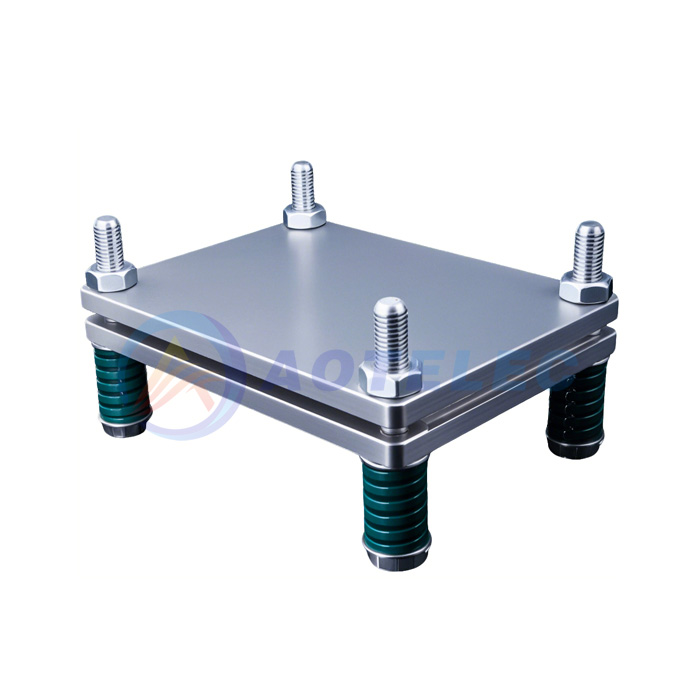

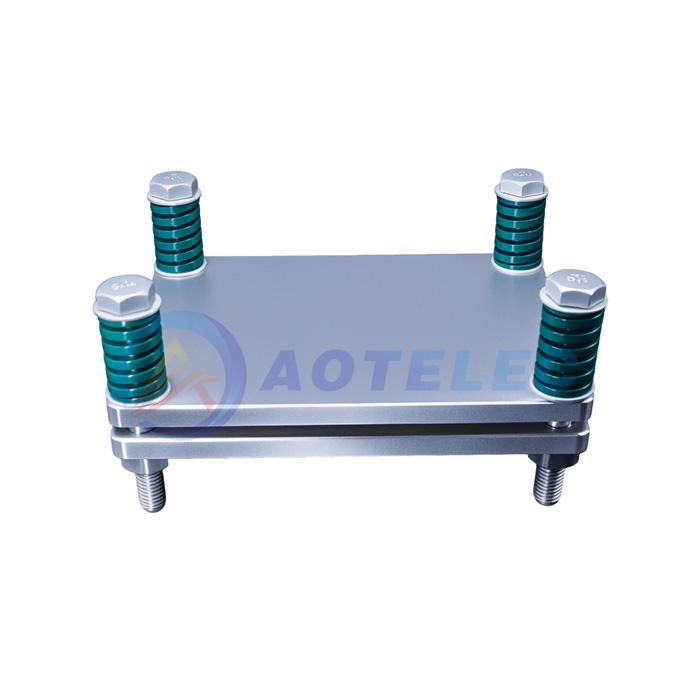

pouch pack battery test clamp Lithium ion pressure cycle test fixture

The pocket battery test clip ensures that the battery remains stable when subjected to pressure or external forces, thus accurately measuring the battery's performance parameters such as voltage, current, internal resistance, etc. The design of this fixture usually takes into account the size, shape and material of the battery to ensure the accuracy and safety of the test. Test clips are usually made of corrosion-resistant materials, such as glass fiber plate + copper gold plating, to adapt to the corrosive environment of battery testing. With good elasticity and toughness, it can withstand repeated clamping and release in pressure cycle tests to ensure stability and reliability under long-term use.
  • Item NO.:

    AOT-BJ-9080P
  • Lead Time:

    5-20days
  • Product Orgin:

    China
  • Brand:

    AOTELEC
  • Shipping Port:

    xiamen
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

The pocket battery test clip ensures that the battery remains stable when subjected to pressure or external forces, thus accurately measuring the battery's performance parameters such as voltage, current, internal resistance, etc. The design of this fixture usually takes into account the size, shape and material of the battery to ensure the accuracy and safety of the test.

Test clips are usually made of corrosion-resistant materials, such as glass fiber plate + copper gold plating, to adapt to the corrosive environment of battery testing.

With good elasticity and toughness, it can withstand repeated clamping and release in pressure cycle tests to ensure stability and reliability under long-term use.

Ultimate dimensions of battery cell

L90*W82 (mm)

Limit Pressure of battery cell

3000N

Material of fixture plate

Aluminum alloy

Thickness of fixture plate

8mm

Dimension of the fixture

90*110mm

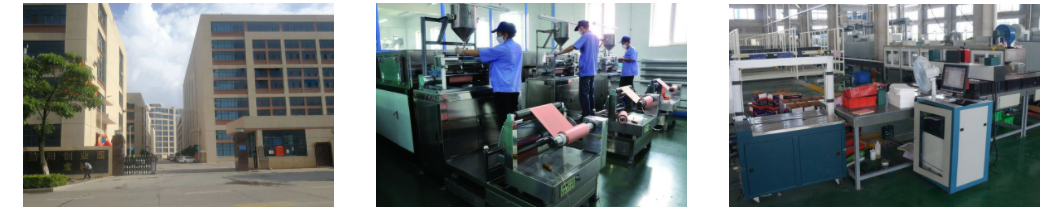

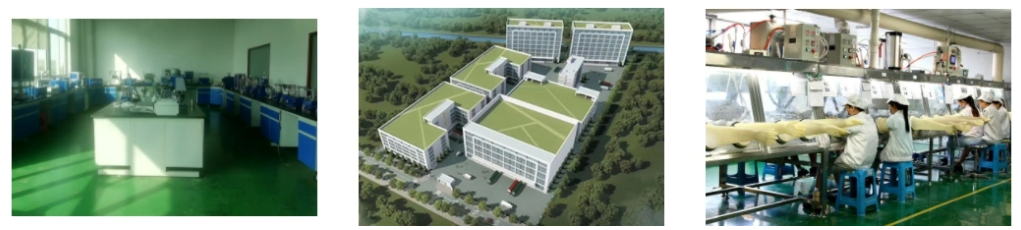

company profile


Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment.



Exhibition


AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate


Cooperative partners



FAQ


Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).




Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.


Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.


Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.


Q5:What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
