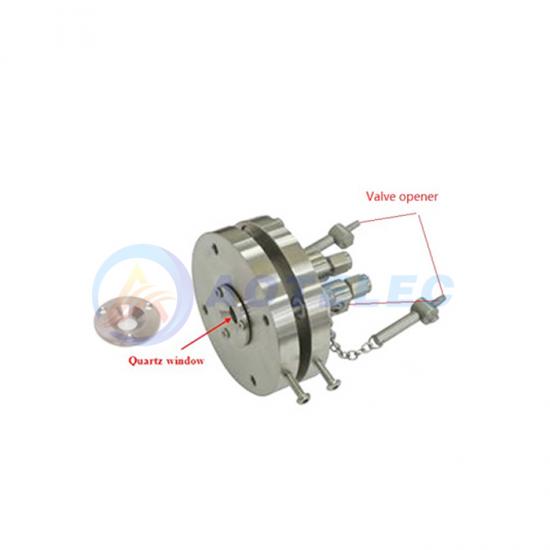

It contains a quartz observation window on the bottom which allows in-situ X-Ray analysis of battery material phase transition during charging and discharging process. Two needle valves allow you control air flow pressure and its splittable design provides you the most convenient way to test various anode and cathode materials. It's an excellent tool for Lithium/Zinc Air Battery Research.
model
AOT-STC-ZINCAIR-W

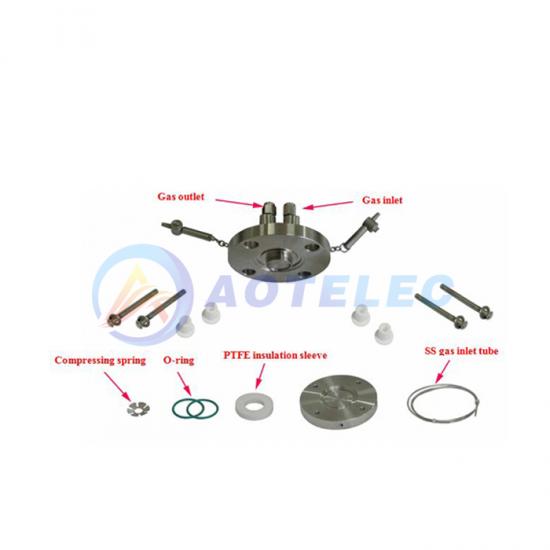

Structure
(1)316 Stainless Steel Structure ensures high electrical conductivity and good corrosion protection
(2)Two electrodes design
(3)Internal compress spring ensures a good metal contact of the electrodes
Bottom Recess Area
16mm Dia. (The recess area can accomodate the electrodes with size upto 16mm dia.)

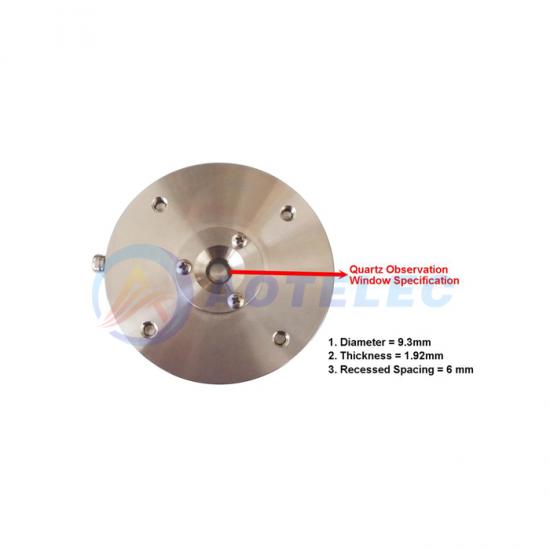

Quartz Observation Window
(1)Diameter = 9.3mm Quartz Observation Window allows the X-Ray beam penetration.
(2)Thickness = 1.92mm
(3)Recessed Spacing = 6.00 mm
Max. Working Temperature
200°C
Valves & Fittings
Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet
Dimensions
Φ80×62mm
Warranty
One Year limited manufacture warranty with lifetime support
