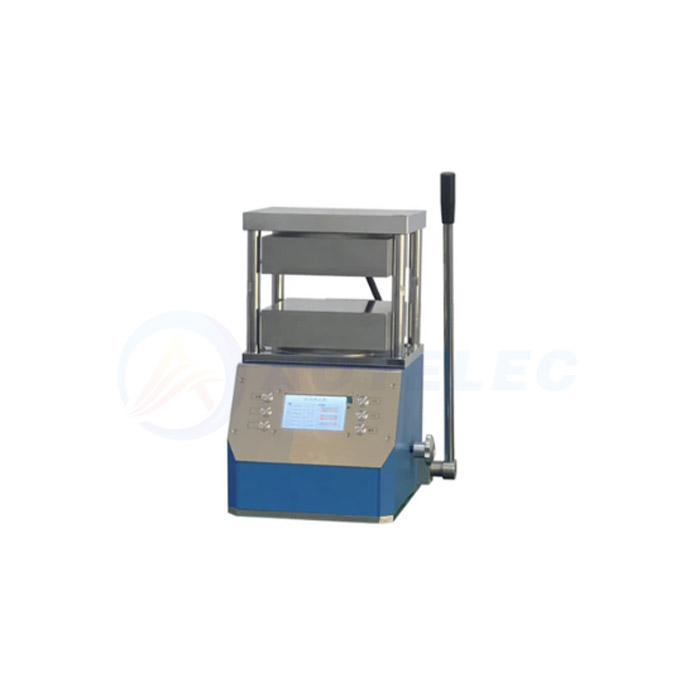

10-Ton Benchtop Heated Lab Press with Dual Flat Heating Plates

10-Ton Benchtop Heated Lab Press with Dual Flat Heating Plates

The AOT benchtop 10T manual hydraulic heated lab press is designed for heated pressing of polymer, ceramic powder and electrode/membrane films.

Item NO.:
AOT- HPM-10
Lead Time:
15-20
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

The AOT benchtop 10T manual hydraulic heated lab press is designed for heated pressing of polymer, ceramic powder and electrode/membrane films. The water cooling jackets are installed with the heating plates to allow the heated plates to achieve fast cooling (The water chiller is optional for purchase at extra cost).

At AOT Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.

AOT Supplies can offer heated lab presses with a heating plate size from 100x100 mm to 400x400 mm. We also have heated presses that can be heated up to 500 °C. Please contact us for your heated lab press.

Brand	AOT-HPM-10
Product SKU #	PR0330 (without water chiller) PR0330-1 (with water chiller)
Pressure range	0-10 Metric Tons
Heating range	up to 300 °C
Diameter of piston (d)	70 mm
Temperature control accuracy	0.1 °C
Cooling mode	Air / Water cooling
Heating plate (MxN)	180x180 mm
Hot press dimension (LxWxH)	280mm x 320mm x 520 mm
Power supply	110V/1800W
Net weight	75kg
Warranty	Limited one year warranty, excluding damages caused by improper use
Note	Please clean the press after each use to ensure the best performance and longer life time

Company Profile

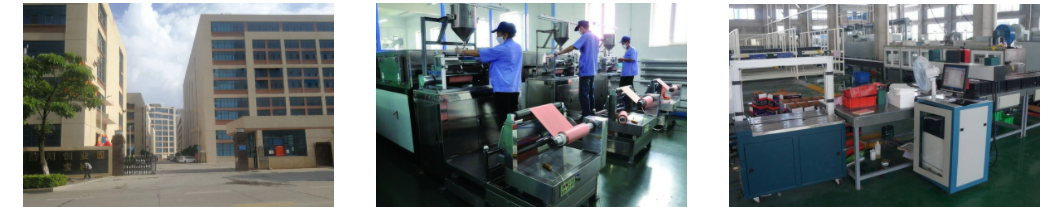

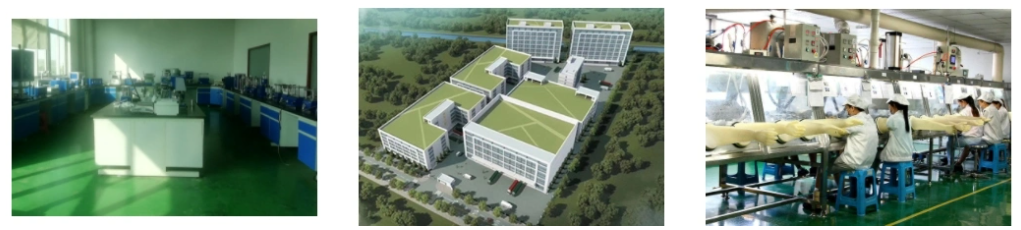

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
