Mainly used for battery material research, high-precision test, pulse charge-discharge test, direct current internal resistance (DCIR) test, cycle life (Cycle Life) test.
The specific application of multi-range technology can solve practical problems in many projects. Compared with traditional single-range equipment, it has obvious advantages: improving the accuracy of different current ranges; improving the hardware response time of different current ranges.
Independent constant voltage source and constant current source for each channe.
Specifications：
|
Product Name |

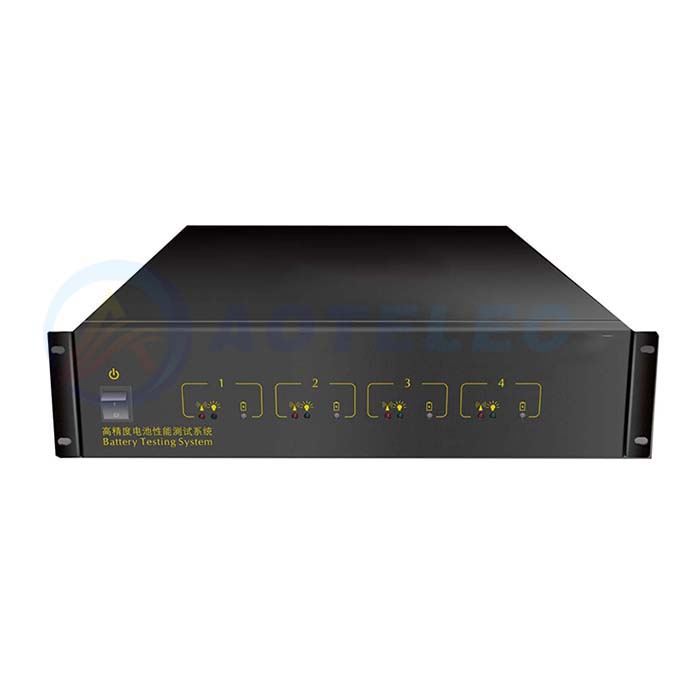

Lithium Ion Battery Testing Equipment |
|
|
AC Input Power |
220/110V±10%/50Hz/60Hz |
|
|
Resolution |
AD:16bit;DA:16bit |
|
|
Impedance Input |
≥500MΩ |
|
|
Input Power |
250W |
|
|
Channel Features |
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure |
|
|
Channel Control Mode |
Independent Control |
|
|
Voltage |
Per Channel Voltage Range |
0.7V~5V |
|
Lowest discharge voltage |
0.7V |
|
|
Accuracy |
± 0.02% of FS |
|
|
Stability |
±0.005% of FS |
|
|
Current |
Multi Range |
Rang1: 0.1uA---150uA ± 30nA |
|
Rang2: 150uA---5mA ± 1uA |
||
|
Rang3: 5mA---150mA ± 30uA |
||
|
Rang4: 150mA---5A ± 1mA |
||
|
Accuracy |
± 0.02% of FS |
|
|
Stability |
±0.005% of FS |
|
|
Power |
Per Channel Max. Output Power |
25W |
|
Stability |
± 0.01% of FS |
|
|
Time |
Current Rise Time |
The Current gets to (10%-90%) Hardware Rise Time is 100μs |
|
Step Time Range |
Single Step Time Rang>=10ms |
|
|
Data Recording |
Record Condition |
Lower sampling time: >=1ms |
|
Lower sampling Voltage:>= 1mV |
||
|
Lower sampling Current: :>= 100nA |
||
|
Record Frequency |
1000Hz |
|
|
Charge |
Charge Mode |
Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,Constant Power Charge |
|
End Conditon |
Voltage,Current,Relative Time,Capacity |
|
|
Discharge |
Discharge Mode |
Constant Current Discharge,Constant power Discharge, Constant resistance discharge, |
|
End Condition |
Current,Voltage,Relative Time,Capacity, |
|
|
Pulse Model |
Charge |
Constant Current Model;Constant Power Model |
|
Discharge |
Constant Current Model;Constant Power Model |
|
|
Min Pulse Width |
400μs |
|
|
Pulse Number |
Single Pulse Step Support 16 different Pulse |
|
|
Charge r To Discharge |
One Pulse Step Can Support Continuous Charge And Discharge Change |
|
|
End Condition |
Voltage,Relative Time, |
|
|
DCR Testing |
Support Custom Access Point And Count The DCR |
|
|
Cycle |
Loop Measure Range |
1~65535 times |
|
Max Steps Per Loop |
254 |
|
|
Nested Loop |
Nested loop Function,Max Support 3 Layers |
|
|
Protective Function |
Software Protection |
Power-down Data Protection |
|
• Off-line Testing Function |
||
|
Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time |
||
|
Hardware Protection |
Additional Anti-reverse Protection Model |
|
|
Voltage and Current Testing Sample |
4-wire connecting |
|
|
Noise Density |
<85dB |
|
|
Data Management |
MYSQL |
|
|
Communication Means |
TCP/IP Protocol |
|
|
Data Output |
EXCEL,TXT |
|
|
Communication Interface |
Ethernet Port |
|
|
No. Of Channels Per Unit |
4 Channels |
|

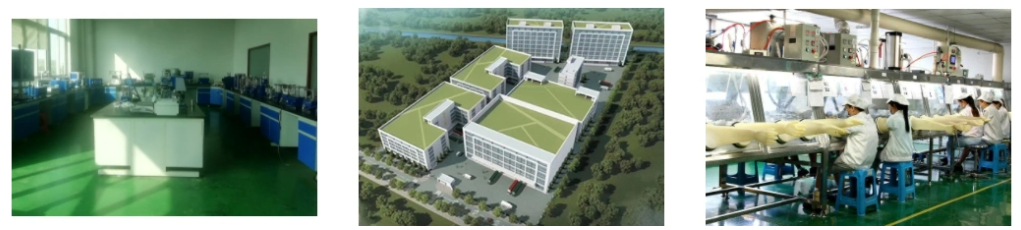

Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
Certificate
Cooperative Partner
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
Q5:What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
