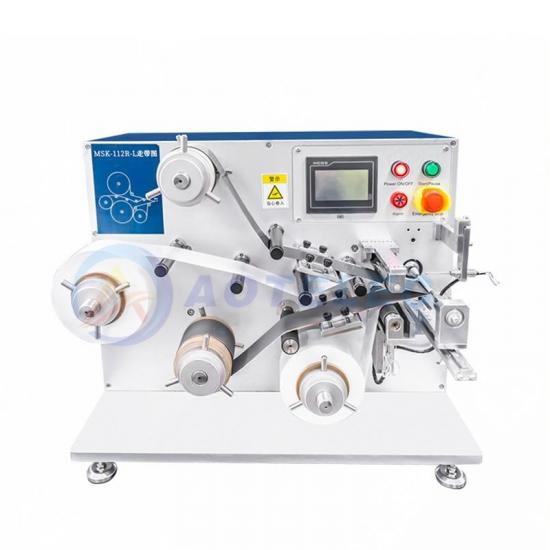

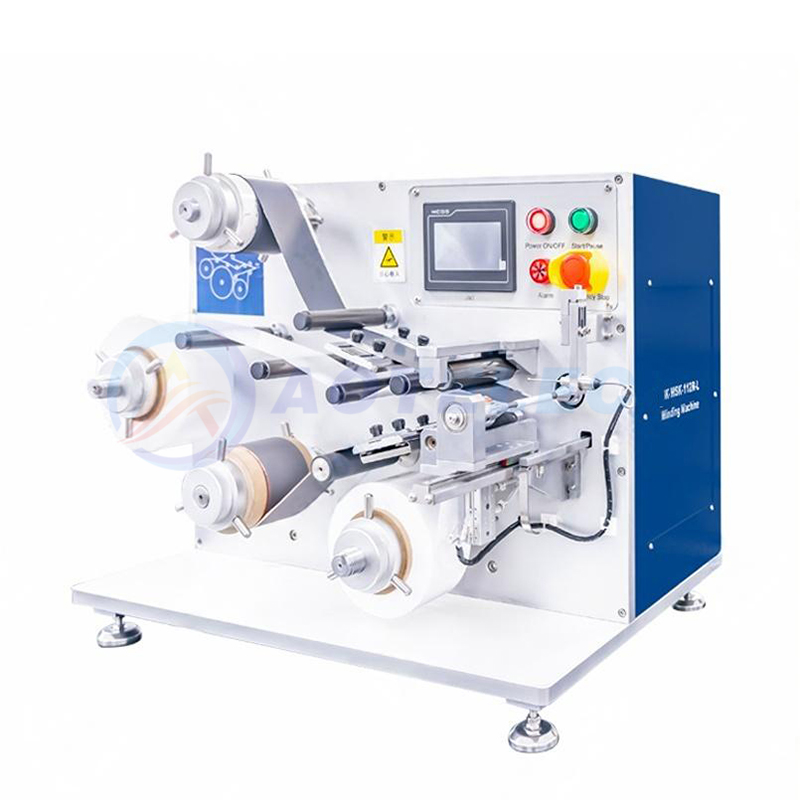

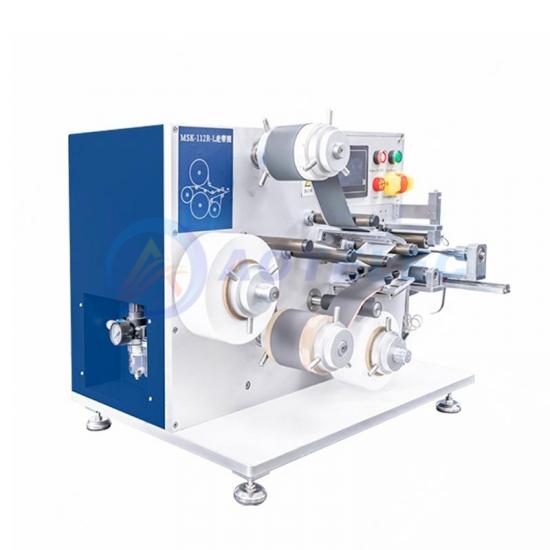

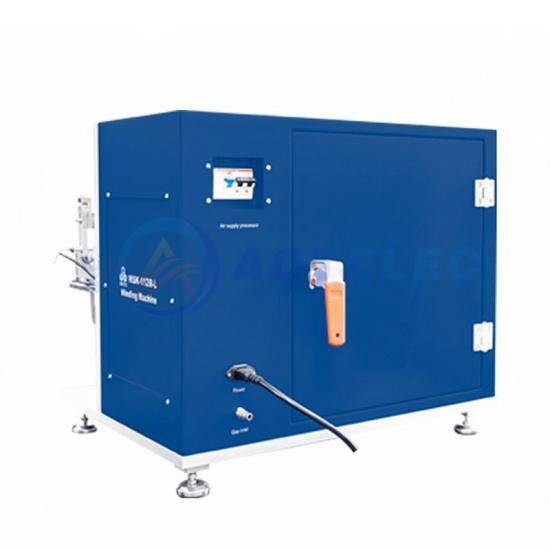

AOT-MSK-112R-L is used for the winding process of lithium-ion battery electrodes. It adopts passive unwinding, manual cutting, manual tape pulling, guide groove positioning, automatic winding, manual gluing, and manual unloading. Suitable for laboratory use in product process exploration.
Functional Features:
1.Suitable for cylindrical battery 18650 ,21700 ,4680 (full pole ear) winding process;
2.Suitable for roll materials, producing finished battery cells;
3.Passive unwinding, automatic estimation of roll length, manual pulling of polarizer, automatic winding, manual cutting, and manual gluing;
4.Pole plate guide slot positioning, adjustable guide slot position and width;
5.The winding speed and number of turns can be freely set;
6.The winding tension is controlled by the unwinding friction force and cannot be set;
7.Desktop standing structure;
8.PLC control, touch screen setting;
9.The equipment has a small footprint and is suitable for laboratory use.
Technical Parameter
|
Product Name |
Cylindrical Battery Winding Machine |
|
Power |
Single phase AC110-20V ± 10%, frequency 50/60Hz, power 200W |
|
Roll needle form |
plug-in circular roll needle [roll needle diameter 6.0mm |
|
Cell size and diameter |
Max Φ46mm， Length Max.80mm |
|
Guide slot size width |
Max.100mm (adjustable) |
|
Roll core |
3 inches |
|
Roll diameter |
Max 250mm |
|
Winding speed |
Max 300r/min (adjustable) |
|
Equipment size |

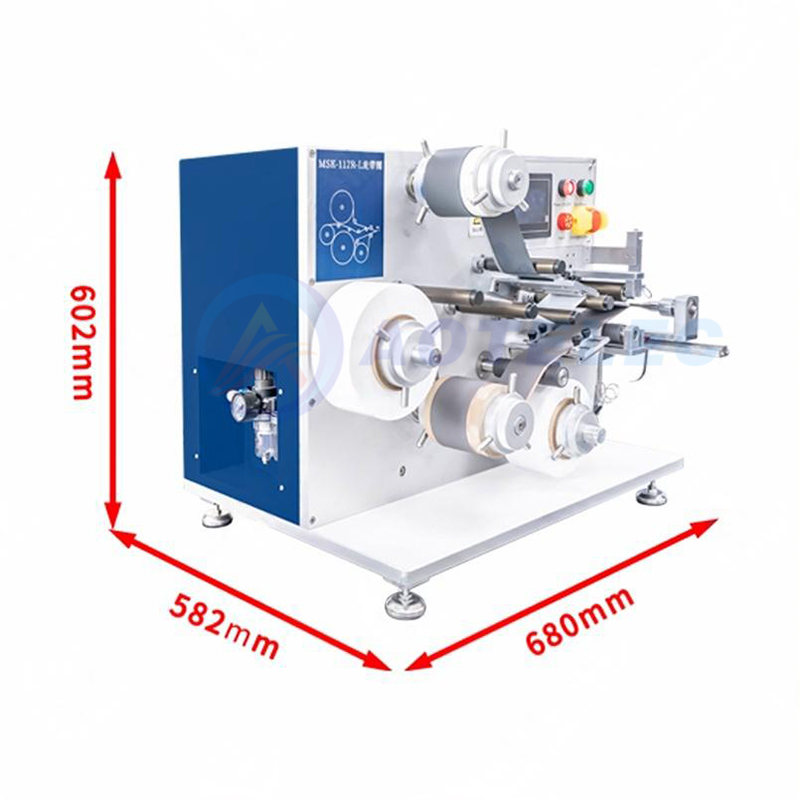

L680 * W582 * H602mm (reference, subject to actual size) |
|
Weight |
100kg (reference, subject to actual weight) |
