Lab Coater Coating Machine for 18650 Cylindrical Battery Lithium Ion Dryer Equipment

Lab Coater Coating Machine for 18650 Cylindrical Battery Lithium Ion Dryer Equipment

AOT-TBJ-180C is a small roll-to-roll coater for laboratory research, because it can coat continuously, it is suitable for pilot scale battery research work in colleges, universities and factories.

Item NO.:
AOT-TBJ-180C
Lead Time:
15-20
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

AOT-TBJ-180C is a small roll-to-roll coater for laboratory research, because it can coat continuously, it is suitable for pilot scale battery research work in colleges, universities and factories.

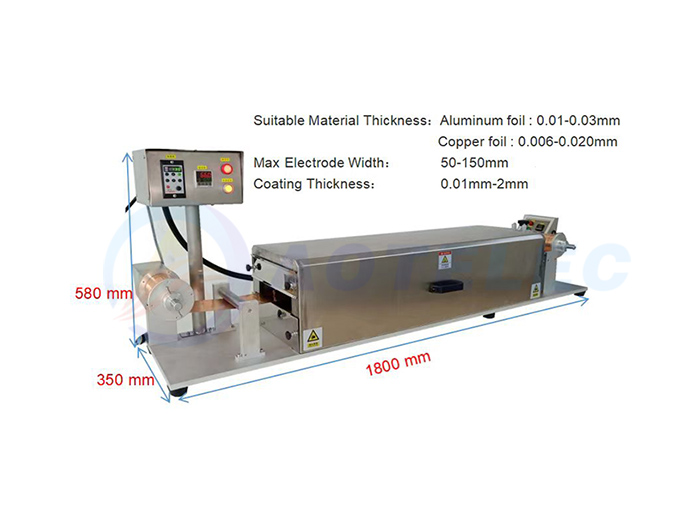

Product Name	Desktop Roll to Roll Continuous Coating Machine
Type	AOT-TBJ-180C
Voltage	AC 220V/110V, 50HZ/60HZ
Power	3KW
Suitable material	Aluminum foil thickness: 0.01-0.03mm Copper foil thickness : 0.006-0.020mm
Max electrode width	50-150mm
Coating speed	0-2m/min, adjustable
Max baking temperature	100℃ ,PID control mode
Coating thickness	0.01mm-2mm
Coating thickness accuracy	0.01mm
Dimension	1800* 350 * 580 mm(LWH)
Weight	128 kg
Oven length	1100mm

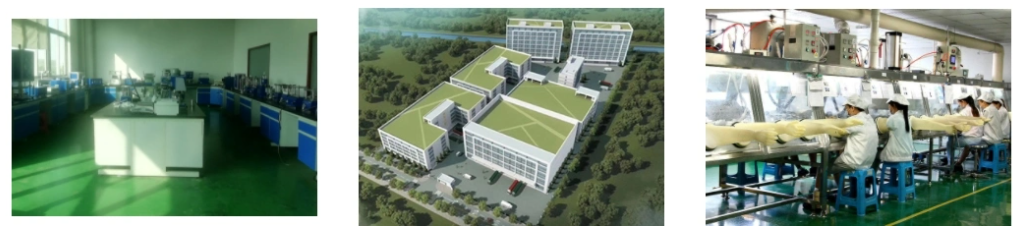

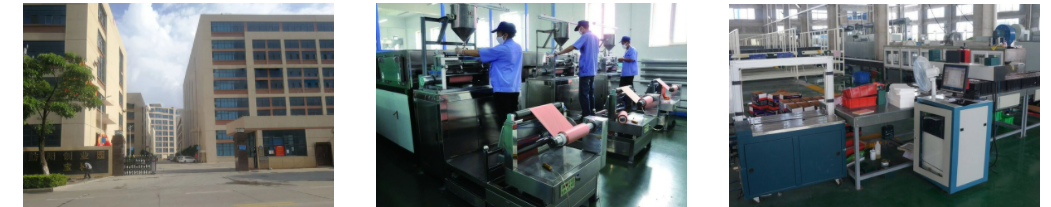

Company Profile

Xiamen AOT Battery Equipment Technology was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.

Q5:What's the warranty for the items?

A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
