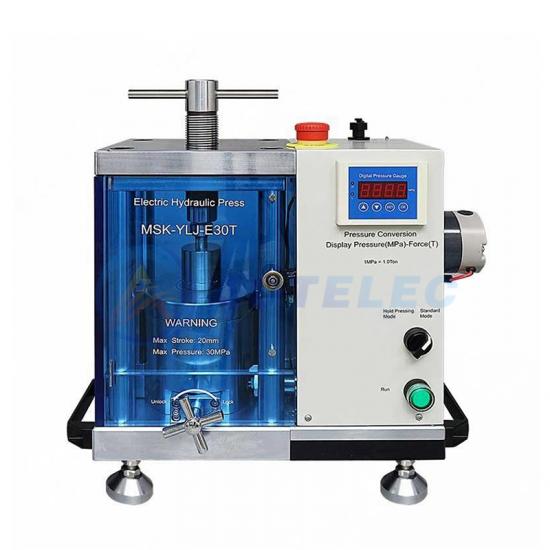

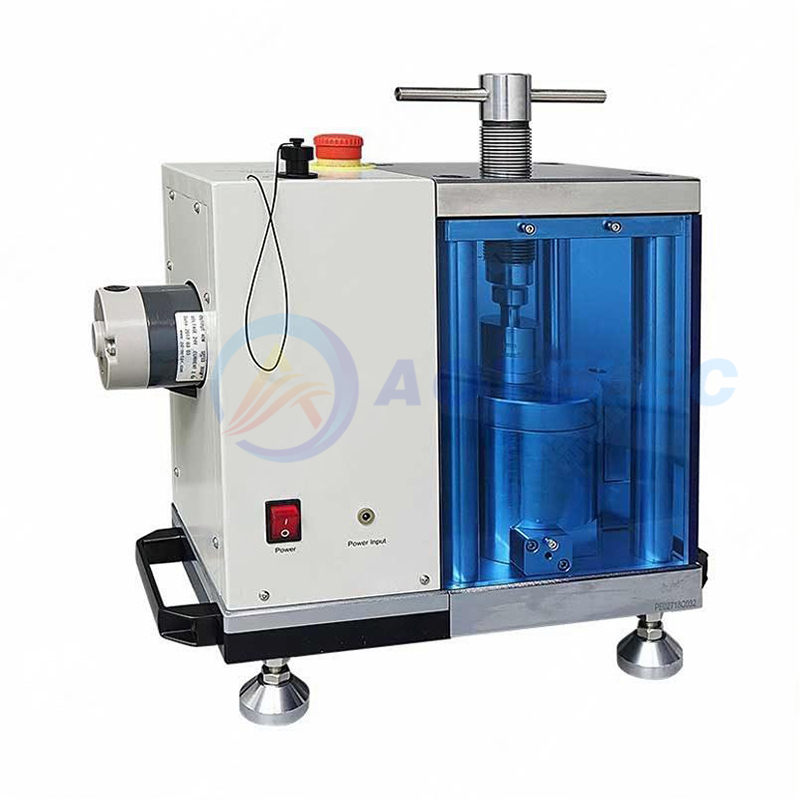

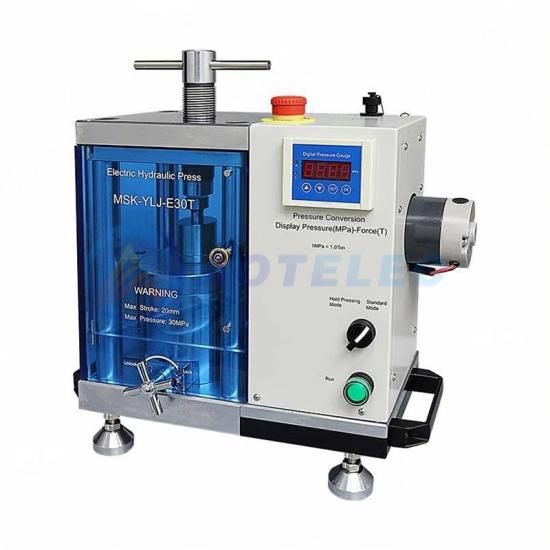

AOT- MSK-YLJ-E30T electric tablet press is a device that can press powder materials into sheets, and can be widely used in industries such as silicates, ceramics, powder metallurgy, and lithium batteries. This device uses a motor as the hydraulic drive system and adopts a digital pressure sensor to accurately control the pressing force, making it an ideal choice for research and development, production, and small-scale trial production of powder making equipment.
Functional Features:
1.Electric pressure, the maximum production pressure can reach 30T.
2.Control pressure through high-precision digital pressure gauge.
3.Has good long-term pressure holding performance.
4.It has automatic pressure compensation function.
5.Equipped with overpressure overflow and electrical interlock protection to prevent overpressure damage.
6.Desktop design, compact and convenient, easy to operate and maintain.
Technical Parameter:
|
Product Name |
Electric Hydraulic Press |
|
Model |
AOT- MSK-YLJ-E30T |
|
power Supply
|
Single phase AC110~220V ± 10%, frequency 50Hz/60Hz, power 100W, less than 4 Ω grounded |
|
Work Pressure |
Max.30T |
|
Platform Size |
Diameter 108mm |
|
Pressure Stroke |
Max.20mm |
|
Pressure Accuracy |
± 0.5T |
|
Pressure Fluctuation |
Stability performance ≤ 1MPa/5min, can automatically replenish pressure |
|
Pressure Value Error |
≤2% |
|
Equipment Size |
L480*W230*H510mm |
|
Weight |
71Kg |
