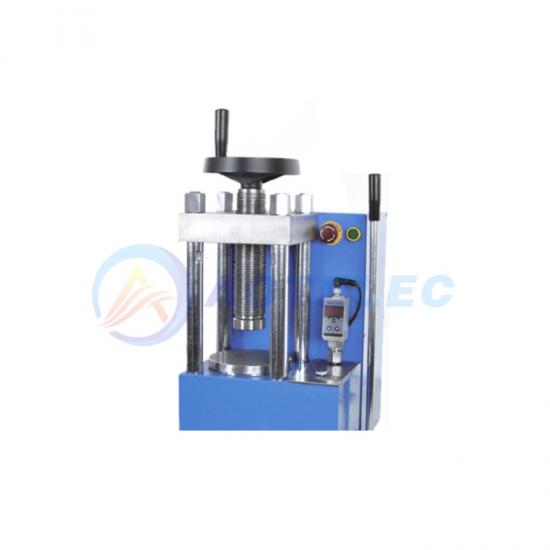

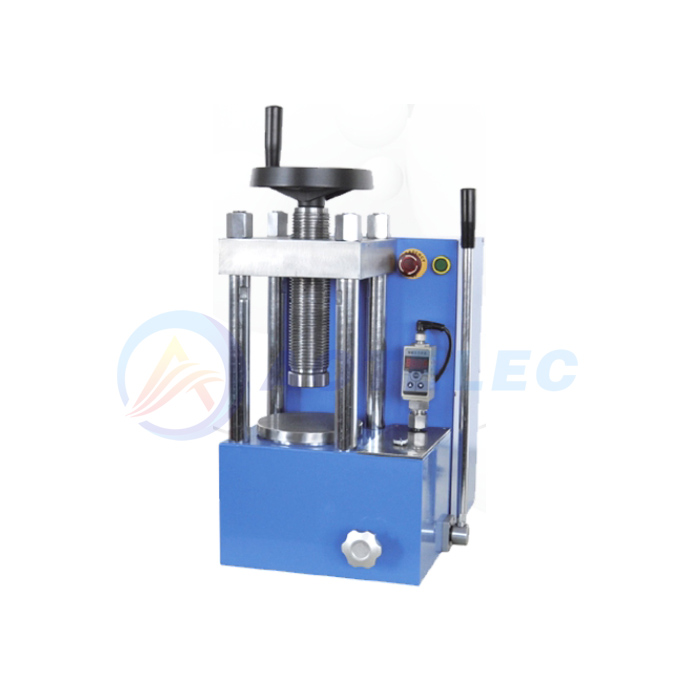

Laboratory Electric Pellet hydraulic press machine(20-60T Optional)

Laboratory Electric Pellet hydraulic press machine(20-60T Optional)

AOT-MD-2060(20T-60T Optional) With the characteristics of precise and adjustable pressure, convenient and efficient operation, good molding quality, etc.

Item NO.:
AOT-MD-2060
Lead Time:
10-20days
Product Orgin:
China
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

AOT-MD-2060(20T-60T Optional) strong and stable pressure is generated through an electric drive system, which compacts the battery material powder uniformly into a sheet. With the characteristics of precise and adjustable pressure, convenient and efficient operation, good molding quality, etc., it can meet the requirements of different battery materials for compaction density and dimensional accuracy, and ensure stable battery performance.

Modle	AOT-MD-20	AOT-MD-30	AOT-MD-40	AOT-MD-60
Pressure range	0-20T(0-28Mpa)	0-30T(0-31.5Mpa)	0-40T(0-30Mpa)	0-60T(0-33Mpa)

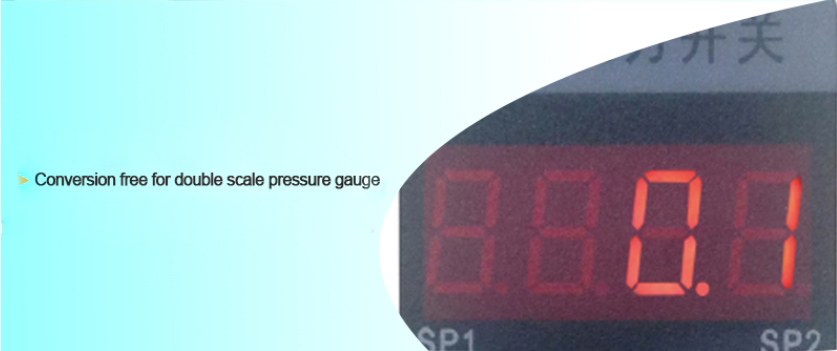

manometer	0.00-40.00Mpa	0.00-40.00Mpa	0.00-40.00Mpa	0.00-40.00Mpa
Maximum piston stroke	30mm（T）	40mm（T）	50mm（T）	50mm（T）
Pressure mode	Electric/manual compression	Electric/manual compression	Electric/manual compression	Electric/manual compression
Pressure stability	<=1mpa/10min	<=1mpa/10min	<=1mpa/10min	<=1mpa/10min
Table diameter	Φ105mm（D）	Φ120mm（D）	Φ140mm（D）	Φ160mm（D）
Number of columns	4 pillars	4 pillars	4 pillars	4 pillars
Column spacing	80*150mm	92*160mm	115*185mm	185*250mm
Overall dimension	245×415×415mm	275×430×420mm	295×450×500mm	405×470×565mm
Equipment weight	58kg	72kg	92kg	140kg
Power source	220v	220v	220v	220v

Certificate

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dnamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

cooperative partners

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.

Q5:What's the warranty for the items?

A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
