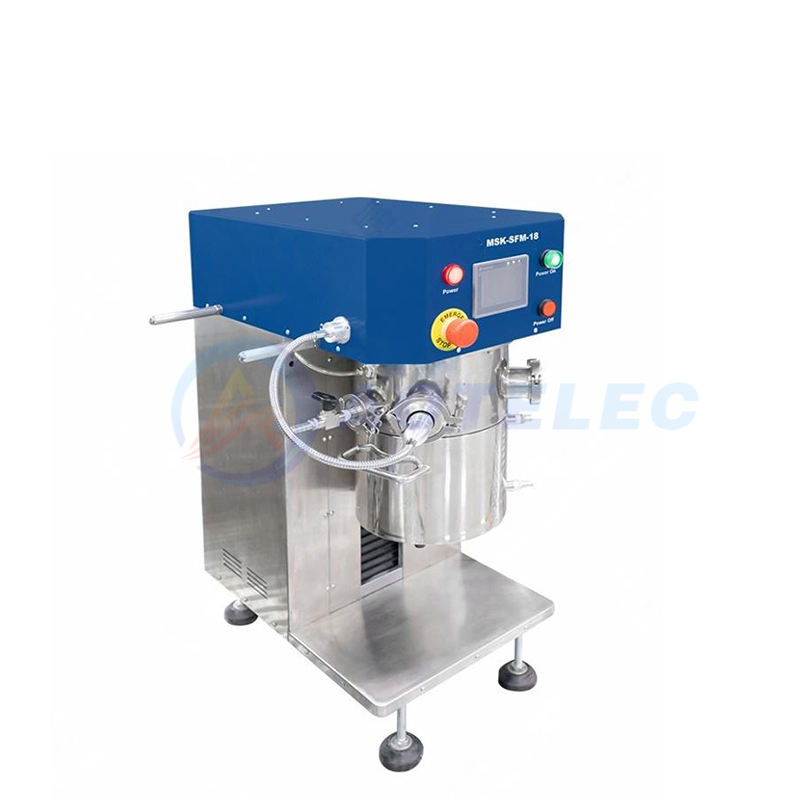

AOT-SFM-18 the vacuum mixer has a beautiful appearance, compact size, good mixing uniformity, and is convenient and easy to use.
The planetary four blade vacuum mixer is an efficient mixing equipment that integrates vacuum mixing and dispersion. It can be applied to various solvent and powder mixing processes, such as the batching process of lithium-ion batteries, tapes, solar energy, chemical and other raw materials.
Technical Parameter:
Power Supply
single-phase AC220V ± 10% (customizable AC110V), frequency 50Hz/60Hz,
Power 1600W (including vacuum pump power 2350W)
Vacuum
Vacuum degree Max -0.095MPa (pressure drop less than 5KPa within 8 hours), customer requested
For centralized vacuum source or optional vacuum pump
Usage Environment
Suggested ambient temperature is 25 ± 3 ° C, humidity is 30~90RH, and there is no vibration or electromagnetic interference

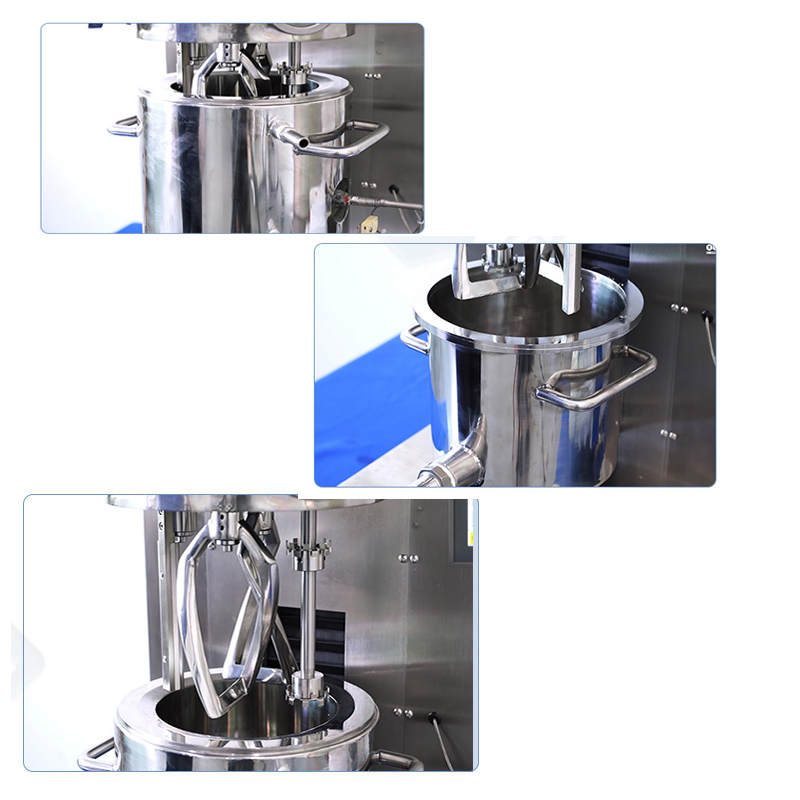

Mixing Paddles
two Fried Dough Twists frame mixing paddles, one dispersion plate and one scraper
Revolution Speed
Max.47rpm
Mixing Speed
Max.295rpm
Dispersed Rotational Speed
Max.4000rpm
Mixing Time
can be set from 0 to 9999 minutes
Tank Capacity
Total volume 2.9L, maximum effective volume 2L (minimum stirring volume 350ml)
Material Tank Size
Inner diameter of Ø 150mm * H165mm (with water jacket, optional with chiller and hot water bath)

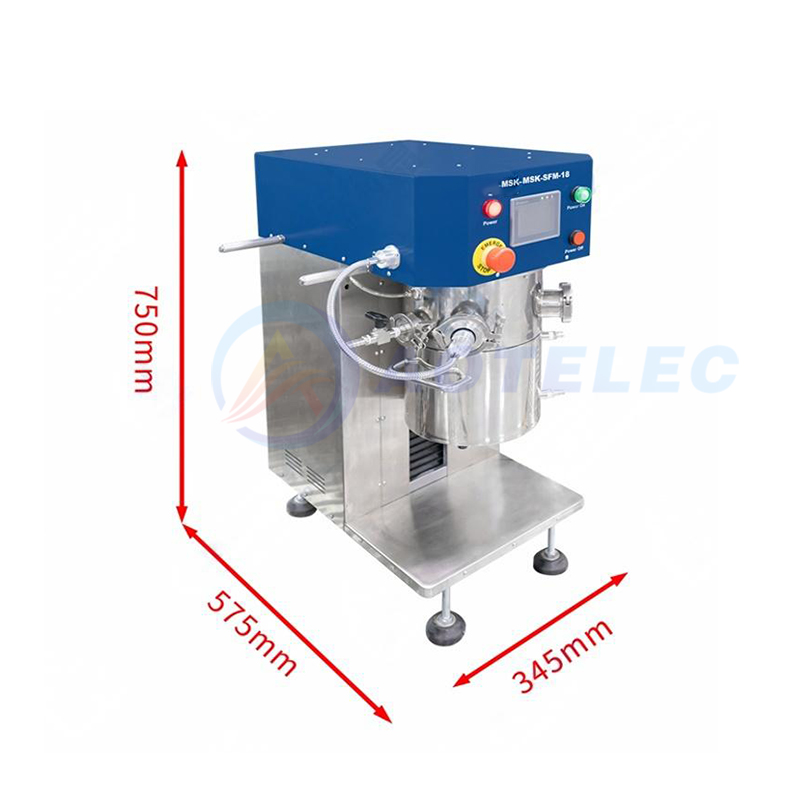

Equipment Size
L575mm*W345mm*H750mm
Weight
About 150kg.
