Precision Disc Cutter with Standard 16, 19, 20 Dia

AOT-MSK-T-10 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm.

Item NO.:
AOT-MSK-T-10
Lead Time:
15-20 days
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

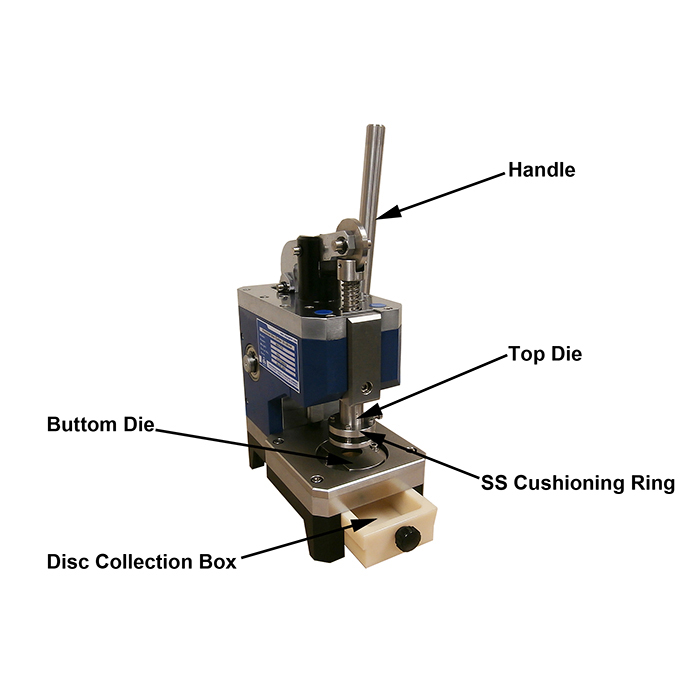

AOT-MSK-T-10 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs of battery electrodes and separator film (<30um). The resulting discs can be used as electrode/separator discs of the split test cell and coin cell for battery researchers as well as TEM sample preparation.

SPECIFICATIONS:

Structure	Major structural material: Cr Plated Steel
Cutting Die	1. 16, 19, and 20mm precision dies are included in the standard package 2. Optional 3 - 24mm customized dies are available upon request
Max. Stroke length	17mm
Product Dimensions	209mm (L) x 120mm (W) x 394mm (H) Compact size which can be put into glovebox through airlock chamber
Application Notes	1. If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies: ①16mm (for negative side case, which is ②16.5mm in diameter) ③19mm (for positive side case, which is 20mm in diameter) 2. 20 mm (for the separator to fully separate the electrodes in both negative and positive cases) 3. For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as an optional die) 4. Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells
Net Weight	10 kg

Company Profile

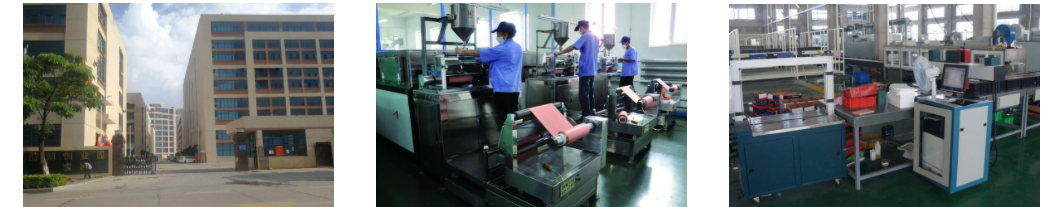

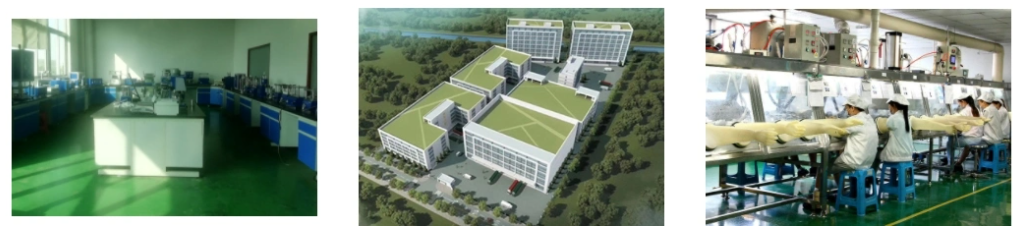

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

Cooperative Partner

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.

Q5:What's the warranty for the items?

A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
