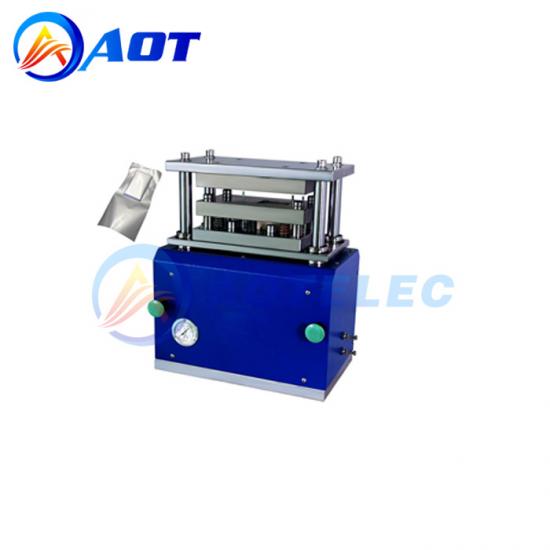

Laboratory Pouch Cell Making Case Forming Machine for Aluminum Laminated Film

This compact pouch case forming machine is suitable forpouch cell case forming of aluminumlaminated film of flexible packaging lithium battery, driven by pneumatic.

Item NO.:
AOT-PCF-65
Lead Time:
10-20days
Product Orgin:
China
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

Description

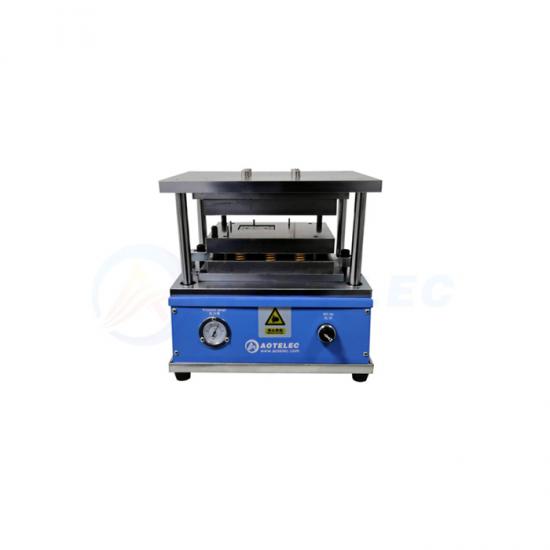

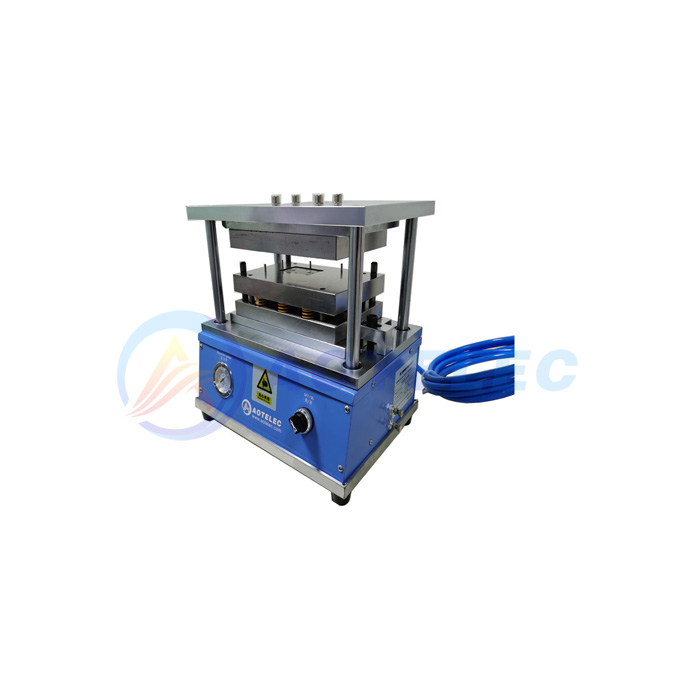

This compact pouch case forming machine is suitable forpouch cell case forming of aluminumlaminated film of flexible packaging lithium battery, driven by pneumatic.

Main features

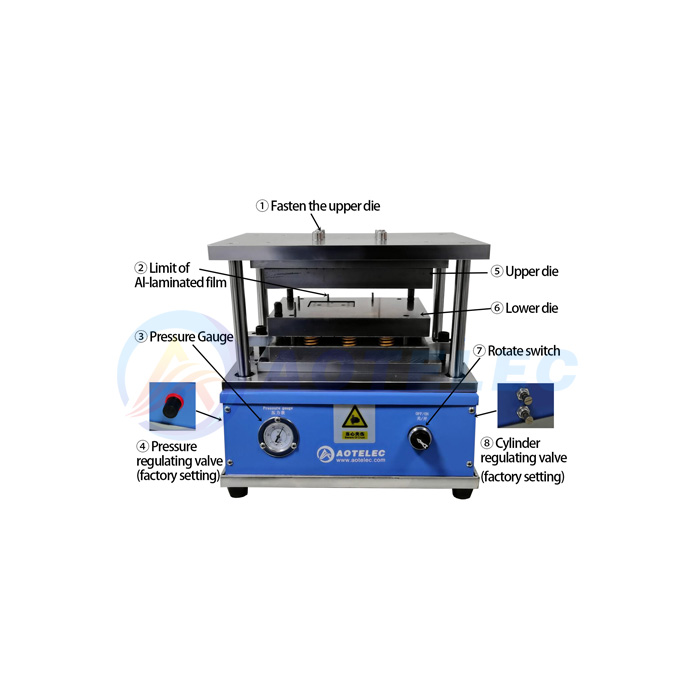

* Double start button, safe and reliable.

* Adopt four guide column structure, sliding up and down smoothly, high precision;

* Simple and fast to change the mold and adjust the drawing depth;

* Sheet aluminumlaminated film molding, suitable forlabresearch and development and sample preparation applications;

*Pure pneumatic press with adjustable press speed and pressure. No electrical parts.

* Compared with similar products, the aluminum-laminated film of the same quality has a deeper and more stable stretch;

* Precise mold design, no crow's feet and collapse Angle in each corner and around the product after molding;

* The mould material high strength chromium steel are used, and the surface is treated by environmental protection electroplating and baking paint;

* Delicate appearance, sheet metal using three-dimensional geometric design, simple and beautiful;

Product name	Pouch cell case forming machine
Model	AOT-PCF-65
Pouch case size	Max65mm50mm (can be customized according to requirements).Required aluminumlaminated film size 160mm 105mm, Pocket has no damage and PP layer has no wrinkles.
Punching depth	≤6mm
Pressure	Max 1 Ton, Adjustable
Air source	0.5-0.7 MPa (Air Compressor is not included)
Forming precision	±0.05mm
AL Laminated Film	The thickness is 0.10 - 0.20 mm acceptable
Dimension	L365mmW235mmH340mm
Weight	45 kg
Warranty	One-year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty

Company Profile

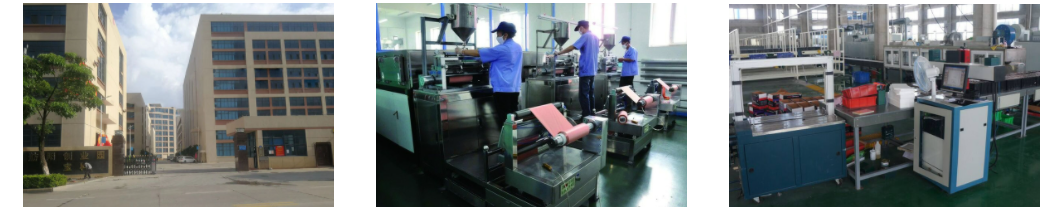

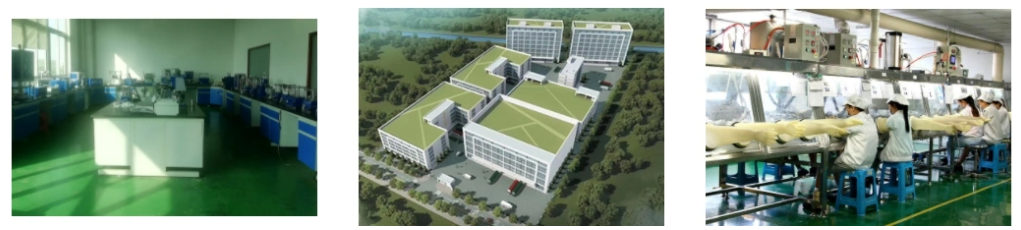

Xiamen AOT Battery Equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
