1.Product Description

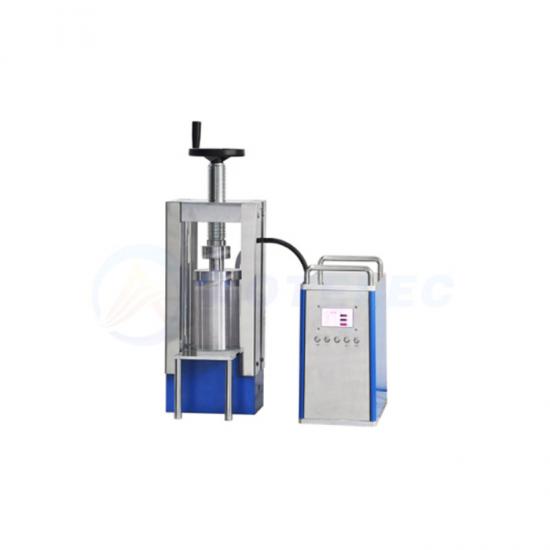

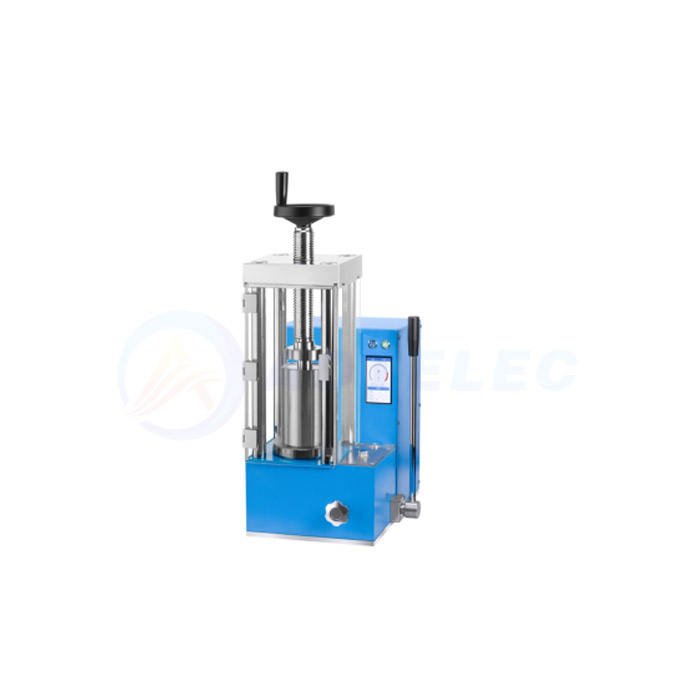

The lithium battery isostatic press machine is specifically designed for lithium battery production. Utilizing the isostatic pressing principle, it ensures uniform pressure application on the battery cell in all directions, resulting in a compact internal structure and enhanced adhesion between electrodes and active materials. This machine effectively improves the compaction density of battery cells, optimizes battery performance, reduces internal resistance, and increases battery capacity and cycle life. It is a critical equipment in lithium battery manufacturing.
2. Product Features
① Durable solid aluminum alloy handwheel;
② Ergonomically designed lever for effortless operation;
③ Chrome-plated hydraulic cylinder with superior sealing and extended service life;
④ Intelligent control panel for easy parameter setup and multi-stage programmable settings;
3. Technical Specifications
|
Model |
PCD-12J |
PCD-20J |
PCD-40J |
PCD-60J |
|
Pressure Range |
0-12T (0-17MPa) |
0-20T (0-21MPa) |
0-40T (0-30MPa) |
0-60T (0-34MPa) |
|
Piston Diameter |
Φ95mm (diameter) |
Φ95mm (diameter) |
Φ130mm (diameter) |
Φ150mm (diameter) |
|
Display Accuracy |
0.1T |
0.1T |
0.1T |
0.1T |
|
Display Screen |
4.3" Touchscreen |
4.3" Touchscreen |
4.3" Touchscreen |
4.3" Touchscreen |
|
Max. Piston Stroke |
40mm |
40mm |
50mm |
50mm |
|
Pressurization Mode |
Electric/Manual |
Electric/Manual |
Electric/Manual |
Electric/Manual |
|
Re-pressurization Mode |
Auto/Manual Slow Press |
Auto/Manual Slow Press |
Auto/Manual Slow Press |
Auto/Manual Slow Press |
|
Protective Cover |
Acrylic Glass |
Acrylic Glass |
Acrylic Glass |
Acrylic Glass |
|
Operating Temperature |
10℃-40℃ |
10℃-40℃ |
10℃-40℃ |
10℃-40℃ |
|
Isostatic Pressure |
0-300MPa |
0-300MPa |
0-300MPa |
0-300MPa |
|
Isostatic Chamber |
Φ22×70mm |
Φ30×150mm |
Φ40×150mm |
Φ50×150mm |
|
Dimensions (L×W×H) |
305×430×530mm |
305×430×600mm |
355×450×710mm |
405×470×720mm |
|
Power Supply |
220V (50/60Hz) |
220V/110V (500W) |
220V/110V (500W) |
220V/110V (500W) |
|
Weight |
110kg |
115kg |
160kg |
220kg |

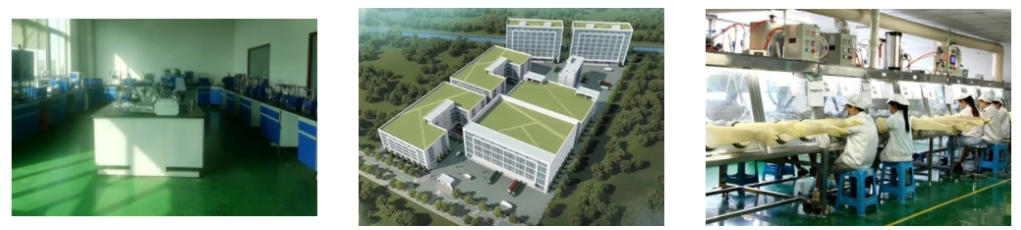

Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.

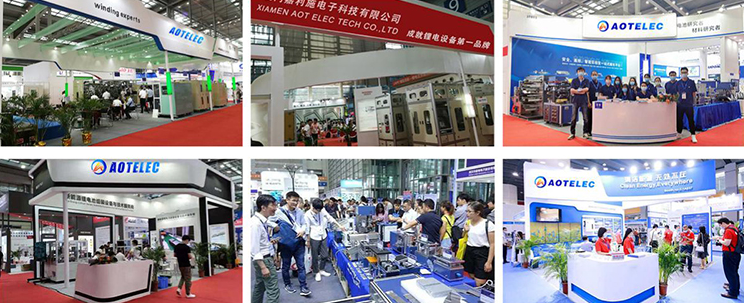

Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative Partner
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
Q5:What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
