The M-ISS-B16 solid-state button type battery device is a specialized testing device for solid-state batteries. The fixture consists of an upper pressure rod, a lower pressure rod, a cavity, and a seal. The fixture can be used with our MSK-YLJ-MA5T electric press for solid-state powder pressing, or with our S-MS-P500 solid-state battery pressure testing kit for charge and discharge testing of solid-state batteries.
Functional Features:
Simple structure, quick installation design, convenient for fixture disassembly and battery powder installation;
Mold steel material, corrosion-resistant, capable of withstanding high pressure;
Corrosion resistant sealing structure ensures both corrosion resistance and sealing of the cavity;
Equipped with conductive columns for easy charging and discharging testing.
Technical Parameter:
|
Fixture Material |
Die steel, PEEK |
|
Work Environment |
Temperature: 25 ± 3 ℃, Humidity: 30-90% RH or lower |
|
Related equipment |
MSK-YLJ-MA5T electric press, S-MS-P500 solid-state battery pressure testing kit |
|
Internal cavity size |
Φ10mm |
|

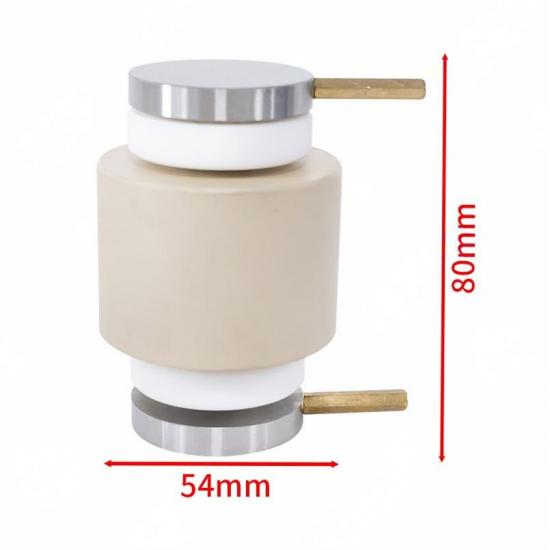

Size |
Φ 54mm * 80mm |
|
Weight |
500g |
