precision semi-automatic die cutter for pouch cell electrode sheets

AOT-MSK-180-N is a precision semi-automatic die cutter for pouch cell electrode sheets (Max. 200mm L x 200mm W). It is an updated version of MSK-180 with more stability and better accuracy at reducing the burrs and powder-shedding of the electrode sheets.

Item NO.:
AOT-MSK-180-N
Lead Time:
10-20days
Product Orgin:
China
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

Technical specifications

Description:

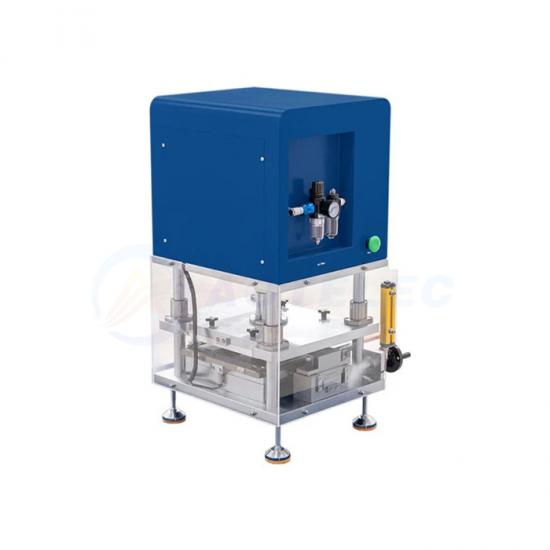

MSK-180-N is a precision semi-automatic die cutter for pouch cell electrode sheets (Max. 200mm L x 200mm W).

It is an updated version of MSK-180 with more stability and better accuracy at reducing the burrs and powder-shedding of the electrode sheets.

This device uses a cylinder to achieve the single piece punching process of the electrode sheet We can provide various shapes of cutting dies according to customer requirements, in order to achieve the molding and die-cutting of battery electrode pieces of different sizes.

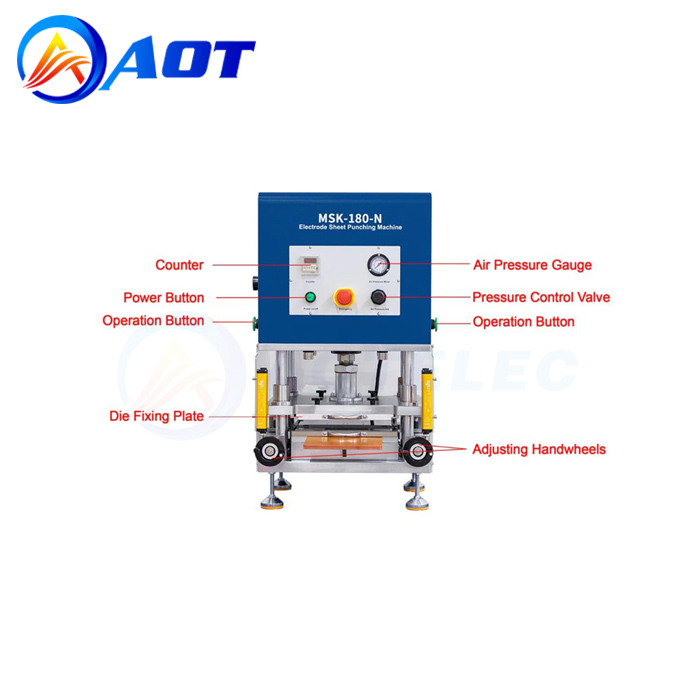

Features:

1. Cylinder driven, with adjustable cutting force and cutting speed;

2. Equipped with precision upper and lower pressure plates and high-performance cutting tools to ensure die-cutting accuracy;

3. Die cut products have small burrs and less powder loss;

4. Comes standard with a set of positive and negative electrode blade molds, and the shape of the molds can be customized according to customer requirements;

5. Digital adjustment of die-cutting depth (cutting amount);

6. The number of die-cutting cycles can be automatically counted;

7. Design a drawer style feeding and safety light curtain interlocking combination to further ensure operational safety;

8. The positioning pole of the gear bar is precise and fast;

Specification:

Model	Battery Electrode Die Cutter Machine AOT-MSK-180-N
Work voltage	AC 110V-220V , 50/60HZ
Power	60W
Warranty	One year limited warranty with lifetime support
Max cutter die size	200mm(L) * 200mm(W), customized
Die cutting burrs	Vertical burrs ≤ 12 um, horizontal burrs ≤ 20 um
Die Set Dimensions	One set of standard electrode die is included.within the dimensions: Cathode: 56mm(L) 43mm(W); Anode: 58mm45mm Customized size die is available upon request
Safety Protection	Built-in IR sensor (Safety Curtain) to protect against hand injuries during electrode feeding.
Cutting Accuracy	±0.1mm
Air Cylinder	3 tons Max. pressure
Feeding	Manually
Air Pressure	0.5-0.8Mpa

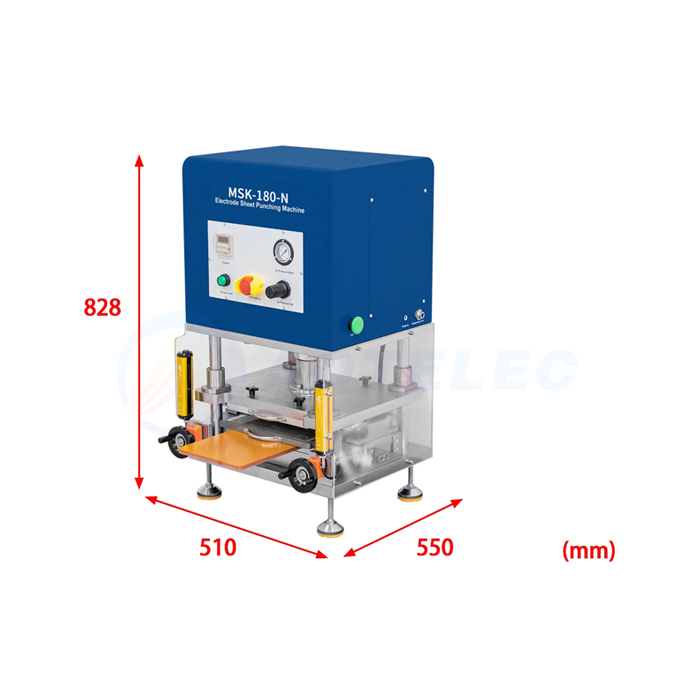

Dimension (LWH)	About 550510 830mm
Net Weight	About 180kg

Die Cutting Machine
