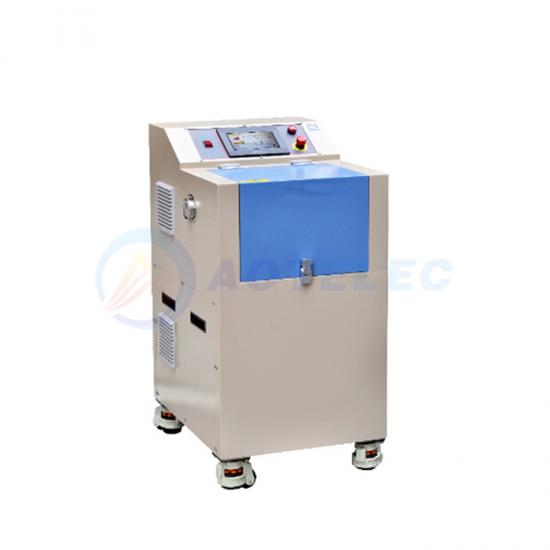

Programmable Generation Planetary Ball Mill with Independent Speed Control

AOT-MSK-SFM15 is a new generation of planetary ball mill, which can adjust the impact force and shear force of various materials during grinding, because it has independent disc rotation and vibrator rotation speed.

Item NO.:
AOT-MSK-SFM15
Lead Time:
15-20
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

Product Name	Planetary Ball Mill
Voltage	208 - 240V AC (single-phase), 50/60 Hz
Power	Max.4550W

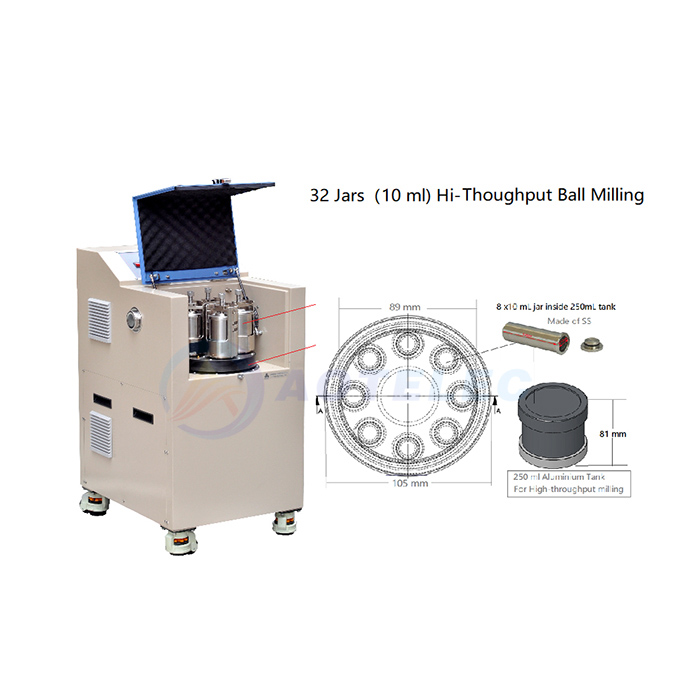

Jars material	Four 500 mL stainless steel jars

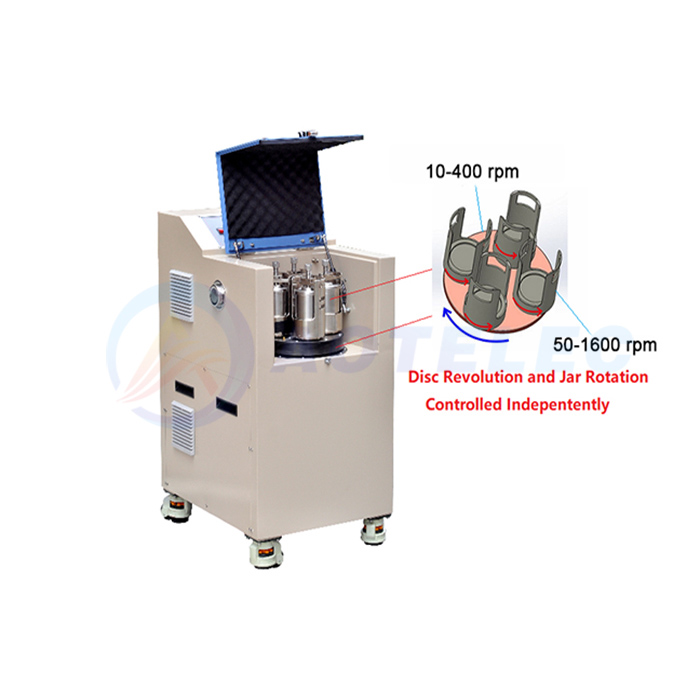

Main disc revolution	10 - 400 RPM adjustable
Centrifugal acceleration:	Max. 16 g
Milling jar self-rotation	50 - 1600 RPM adjustable
Centrifugal acceleration	120g
Total Centrifugal acceleration	Max136 g
Touch Screen Control	Digital display and inputs for speed and time Up to 10 recipes can be stored Max. 8 segments speed control per recipe
Input size	Dia< 3 mm for most materials Dia< 10 mm for brittle materials
Output particle	Wet Milling < 1um average, Dry milling < 20um average
Noise Level	55~70 decibel
Production Dimensions	530mmW×670mmL×1300mmH
Weight	246kg
Notes	1.SS304 mixing jar is suitable for grinding various metal materials. 2.In order to avoid contamination, please pre-milling the material 2-3 times before normally milling, which can make a coating on the surface of the jar and balls. Please use one jar for one type of material. 3.For milling the oxide material, please choose alumina/Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars. 4.Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in a symmetrical position. Otherwise, unbalance rotation, especially one jar, may damage the machine.

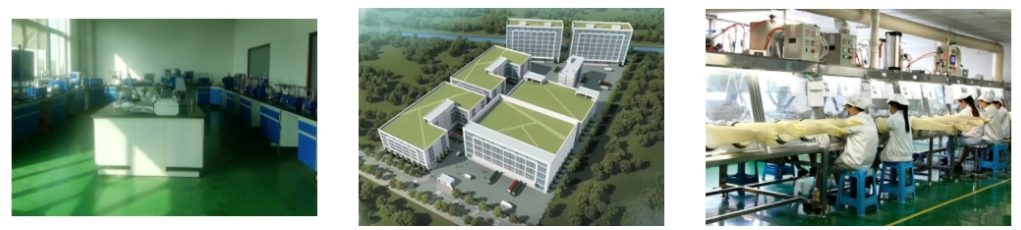

Company Profile

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

Cooperative Partner

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.

Q5:What's the warranty for the items?

A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
