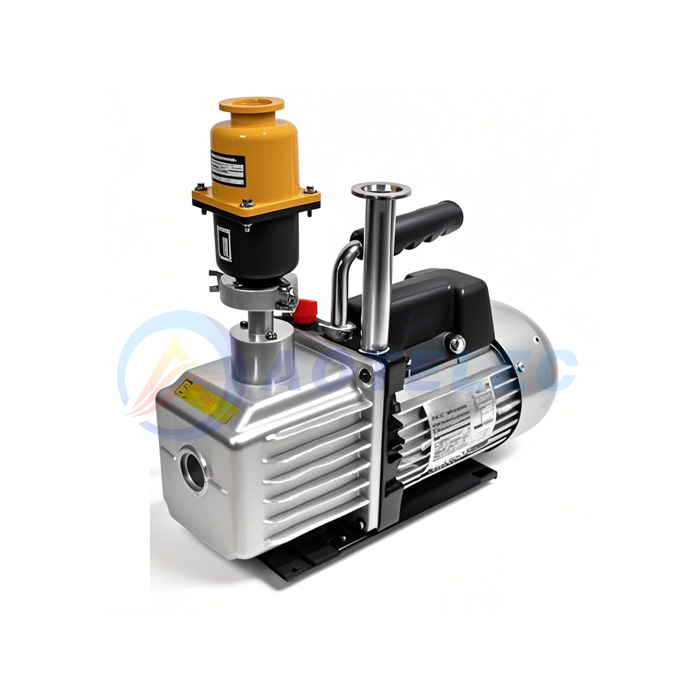

TW-3A Single Stage Rotary Vane Vacuum Pump

Item NO.:
AOT-TW-3A
Lead Time:
15-20
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

This vacuum pump with oil filter is specially designed for lithium battery equipment. At the inlet end of the vacuum pump, a multi-layer high-precision oil filter assembly is configured, which can effectively filter more than 99.9% of the oil. It can prevent oil pollution from entering the production process of lithium batteries, and avoid problems such as capacity attenuation and short circuit caused by impurities.match MSK-AFA-H200A battery coating machine, In the electrode coating, cell injection and other processes, it can not only stably maintain the required vacuum, but also ensure that the production environment is clean, and help improve the yield of lithium batteries.

Model	AOT-TW-3A
Voltage/frequency	110VAC or 220VAC
Pumping rate	6.6 CFM (187 liter/m )
Vacuum degree	10 (0.075 torr)
Rotational speed	1720(rpm)
Power source	360W(1/2HP)
Tank volume	20 (ml)
Operating temperature	-5 °C ~360°C
Vacuum pumping Air port (mm)	1/4 inch
Net weight	9.8kg
splice	M12 x 1.25 mm
Overall dimension	340x135x260
