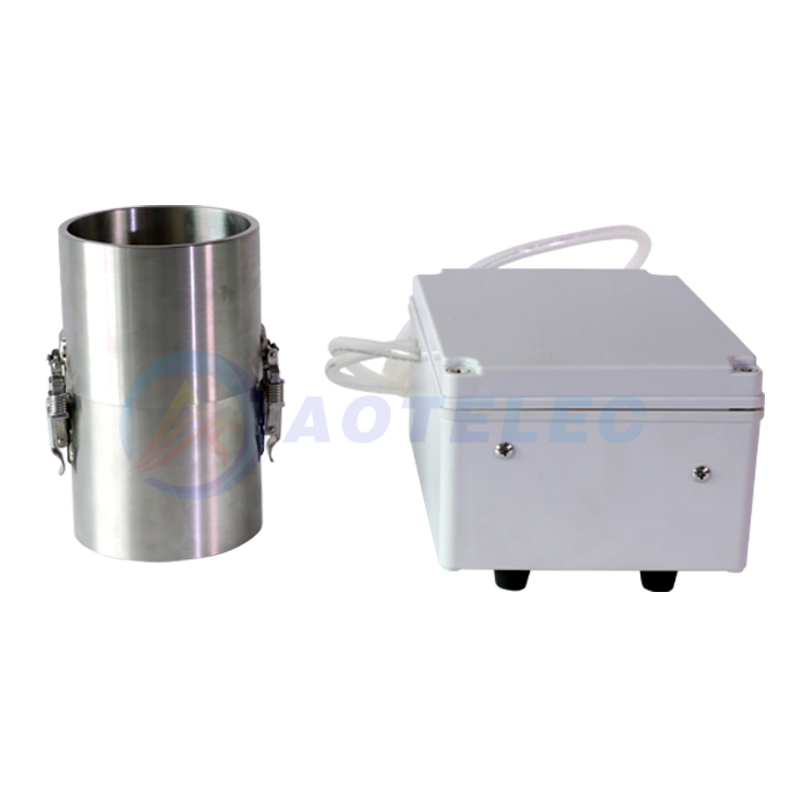

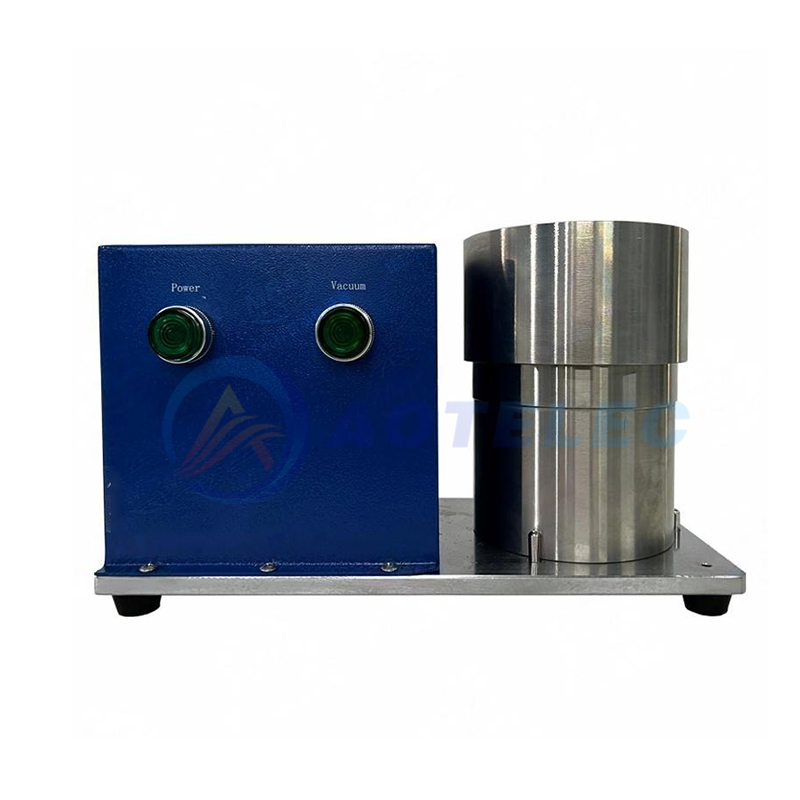

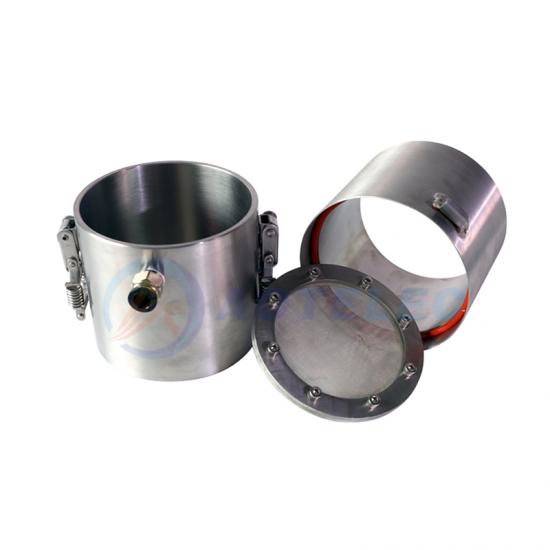

AOT-SF-500M battery slurry filtration device is an essential key equipment in the battery production process, mainly used to remove impurities and particles from the slurry, ensuring the consistency and performance of the battery.
Equipment advantages:
1.Equipped with two types of particle filters, positive and negative, with high filtration accuracy of up to 124 microns,
2.Designed with SUS304 stainless steel, it has good anti-corrosion performance;
3.Small size, easy to operate;
4.Optimize the fine particle size of the slurry to enhance the performance of coating products.
|
Product Name |
Battery Electrode Slurry Filtration |
|
Power Supply |
AC 220V±10% 50HZ |
|
Absolute vacuum degree |
65KPa |
|
Air pump flow rate |
3L/Min |
|
Capacity |
500ml |
|
Filter screen |
80, 100, 150 mesh filter |
|
Type |
Vacuum adsorption filtration |
|
Slurry |
Suggestion: ≤ 20000cp, solid content ≤ 80% |
|
Weight |
4.5kg |
|
Size |
140×150×200mm |
