20T Electric powder Press Machine

Item NO.:
AOT-MD-20
Lead Time:
15-20
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

1. Description

Tablet press is one of the ideal equipment for processing granular raw materials into tablets or granules in industrial sectors such as food, electronics, etc. It is suitable for small batch production, laboratories and other departments to press tablets, contact coal, sugar tablets, calcium tablets, coffee tablets, powder metallurgy, electronic components and various agricultural fertilizer tablets. There are also many choices for the molds of tablet presses, including circular molds, square molds, split molds, circular molds, spherical molds, heating molds, irregular molds, customized molds, and other different specifications and materials.

2. Features

① Pure aluminum alloy handwheel is durable and long-lasting;

② Electroplated countersunk hexagonal screws do not harm hands;

③ Dual scale pressure gauge without conversion;

④ Pure aluminum handle is beautiful and durable;

⑤ Effortless design for pressure handle position;

⑥ Chrome plated oil cylinder has good sealing performance and long service life;

⑦ The fully automatic tablet press adopts metal buttons with silver plated contacts, with a service life of over 100000 times.

3. Main Parameters

Model	AOT-MD-20
Pressure range	0-20T
Display accuracy	0.1 T
Diameter of oil tank	Chrome plated oil cylinder Φ95mm（d）
Maximum cylinder stroke	30mm（T）
Pressing Method	Electric/Manual
Pressure compensation method	automatic/manual slow pressure
Pressure stability	≤1MPa/10min
Table diameter	Φ105mm（D）
Number of columns	4 PCS
Work space	112*160mm
Display screen	4.3-inch touch screen
Pressure conversion	Convert pressure based on sample shape
Dimension	305390440mm
Power	220V/110V(500W)
Net Weight	85kg

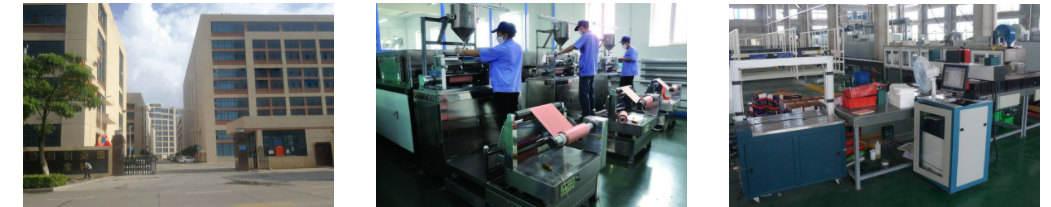

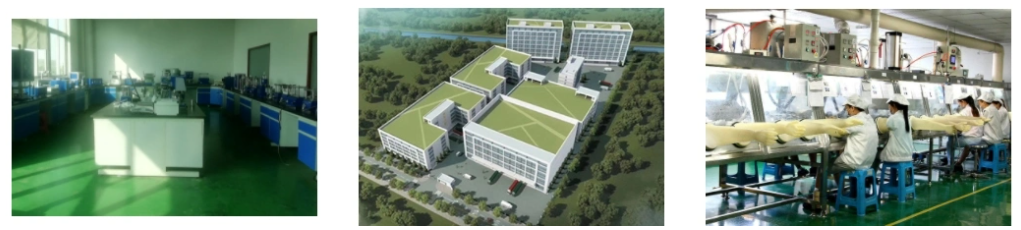

Company Profile

Xiamen AOT battery equipment Technology was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the

industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

Cooperative Partner

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.

Q5:What's the warranty for the items?

A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
